(55.302.AX[01]) - BATTERY & CABLE

Запчасти Case IH 6130 (55.302.AX[01]) - BATTERY & CABLE (55) - ELECTRICAL SYSTEMS

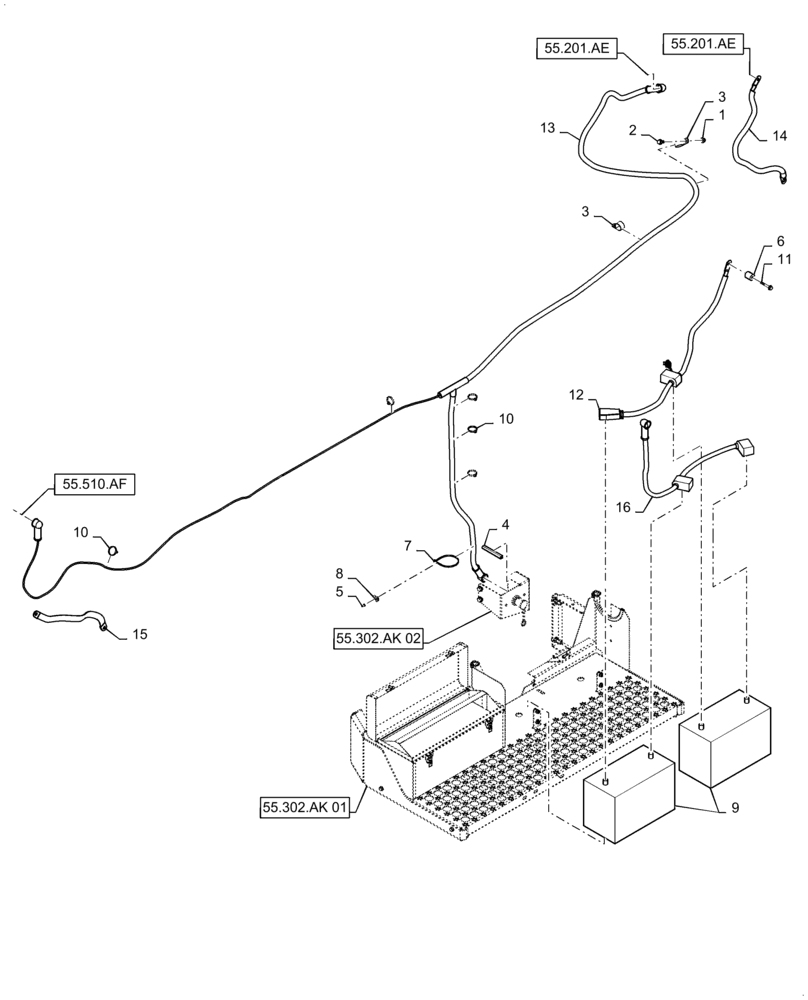

Схема запчастей Case IH 6130 - (55.302.AX[01]) - BATTERY & CABLE (55) - ELECTRICAL SYSTEMS
55.201.ae
7
3
8
55.201.ae
4
5
1
11
12
10
15
55.302.ak 02
14
13
9
10
6
55.510.af
55.302.ak 01
2
3
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231-5146

FLANGE NUT,3/8"-16

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

3

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

4

47560080

PROTECTION

1M OAL

1шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

6

84128110

SPACER

8.5mm ID x 25.4mm OD x 30mm W

1шт.

7

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie, 22.22mm OAL x 15.87mm W x 9.9mm H

1шт.

9

BMF31GW

WET BATTERY

NA Only

2шт.

9

CCMF31GW

WET BATTERY

Canada Only

2шт.

10

529070

CABLE TIE,368.3mm L

5шт.

11

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

12

87398398

NEG BATTERY CABLE

1230mm OAL

1шт.

13

87726637

CABLE

Battery, Positive, Tee, 5300mm OAL x 1000mm OAL

1шт.

14

128742A2

NEG BATTERY CABLE

Ground, PTO Housing

1шт.

15

84422959

STRAP

Ground, Cab

1шт.

16

87726635

CABLE

Battery, Positive, 870mm OAL

1шт.
