(55.624.AZ[02]) - REMOTE ADJUST SPREADER HOOPS ELECTICAL, EU ONLY

Запчасти Case IH 6130 (55.624.AZ[02]) - REMOTE ADJUST SPREADER HOOPS ELECTICAL, EU ONLY (55) - ELECTRICAL SYSTEMS

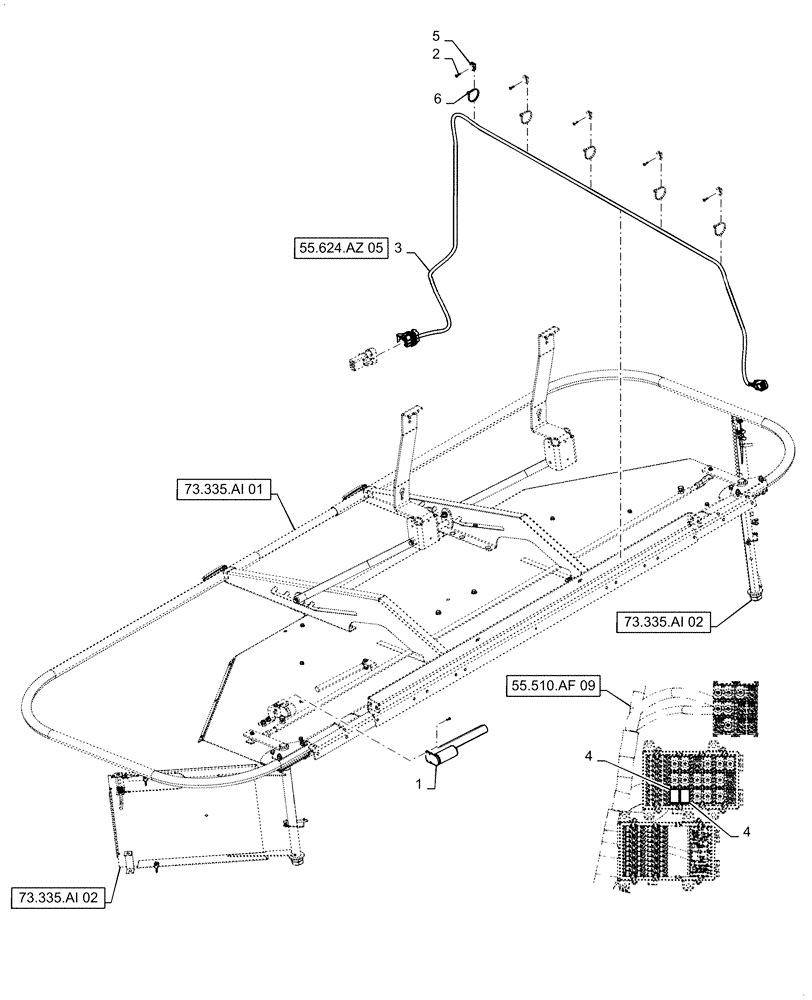

Схема запчастей Case IH 6130 - (55.624.AZ[02]) - REMOTE ADJUST SPREADER HOOPS ELECTICAL, EU ONLY (55) - ELECTRICAL SYSTEMS
73.335.ai 01
3
4
4
1
6
5
55.624.az 05
2
55.510.af 09
73.335.ai 02
73.335.ai 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87347281

ACTUATOR

Spreader Hoop Adjuster

1шт.

2

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

5шт.

3

47622285

WIRE HARNESS

Harness, Chassis, Spreader Pattern Control

1шт.

4

84543528

RELAY,12V, 20A, Micro

Micro Plug In

2шт.

5

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

5шт.

6

86566989

CABLE TIE,208mm L

10шт.
