(90.118.47) - LATCH ASSEMBLY, TRIM PANELS

Запчасти Case IH 6130 (90.118.47) - LATCH ASSEMBLY, TRIM PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

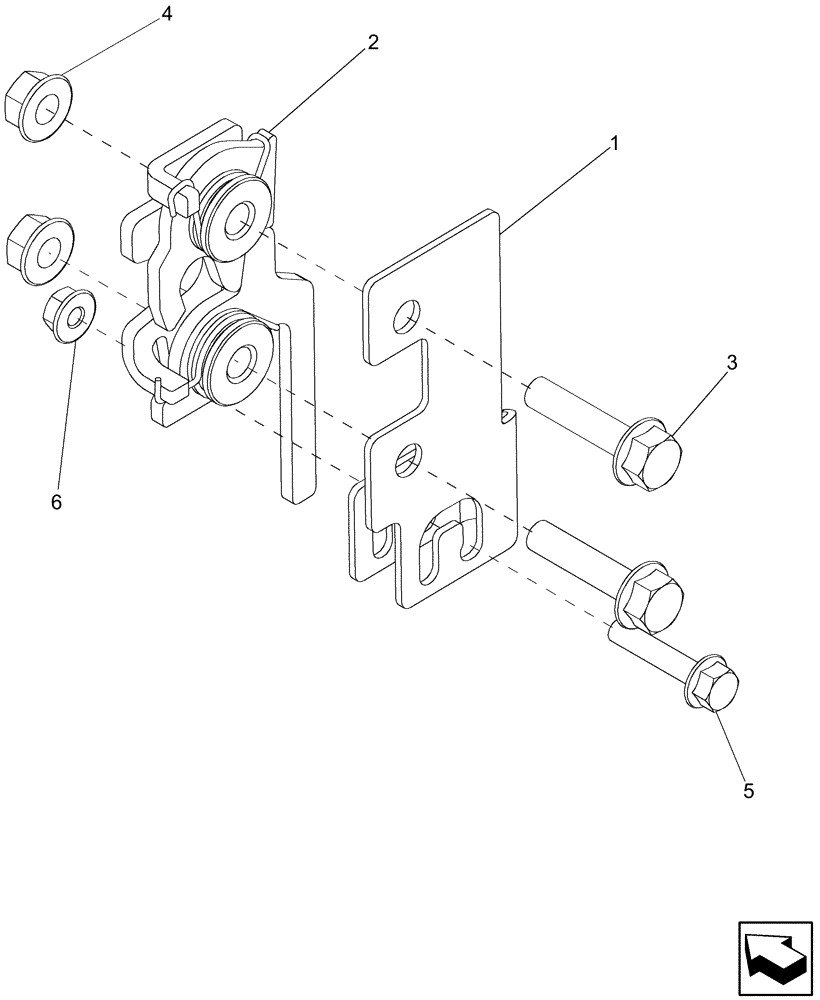

Схема запчастей Case IH 6130 - (90.118.47) - LATCH ASSEMBLY, TRIM PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
4
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87483906

COVER

Trim Panel Latch

3шт.

2

87688487

LATCH ASSY.

Trim Panel

3шт.

3

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

6шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

5

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

3шт.

6

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

3шт.
