(90.160.BL) - VAR - 425358, 425357 - IGNITION SWITCH & CONSOLE DECALS

Запчасти Case IH 6140 (90.160.BL) - VAR - 425358, 425357 - IGNITION SWITCH & CONSOLE DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

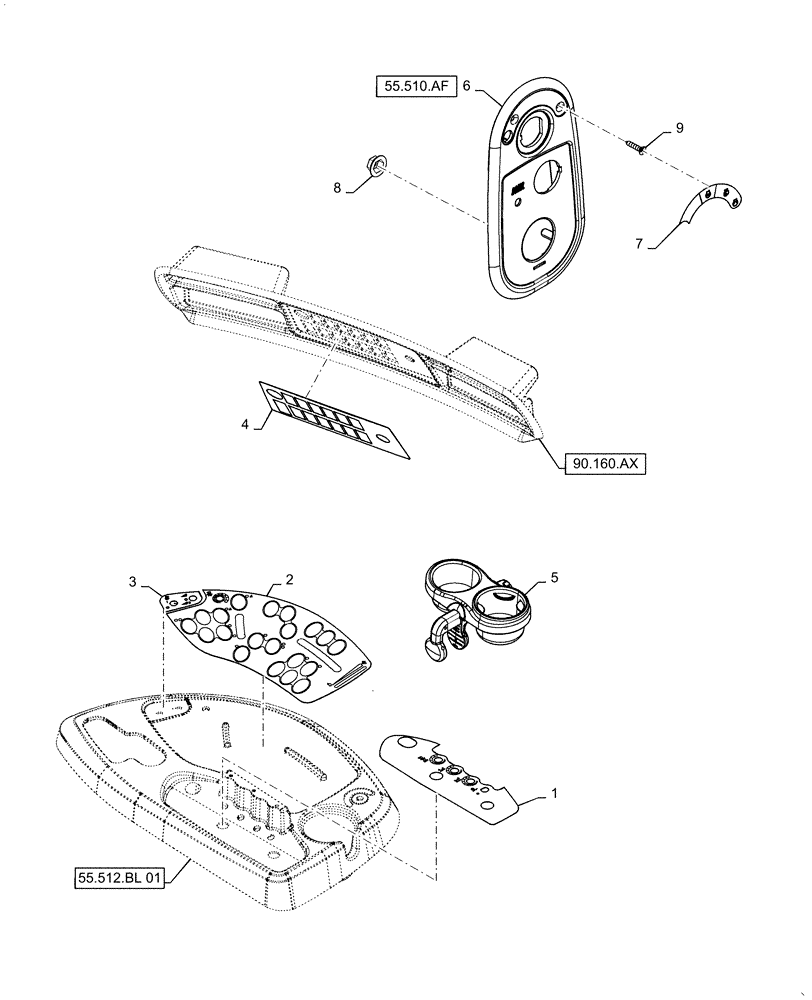

Схема запчастей Case IH 6140 - (90.160.BL) - VAR - 425358, 425357 - IGNITION SWITCH & CONSOLE DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
55.512.bl 01
5
4
90.160.ax
2
55.510.af
3
1
9
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47466627

DECAL

Controls

1шт.

2

47467606

DECAL

Control, VAR - 425358

1шт.

2

84549233

DECAL

Control, VAR - 425357

1шт.

3

47386073

DECAL

Separator-Feeder Switch

1шт.

4

47395906

DECAL

Main Control Panel, VAR - 425358

1шт.

4

84379141

DECAL

Main Control Panel, VAR - 425357

1шт.

5

47401102

TRIM PANEL

Cupholder Attachment, VAR - 425358

1шт.

6

84563625

PANEL

Ignition

1шт.

7

84403170

DECAL

Heater

1шт.

8

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

9

15916007

SELF-TAP SCREW,Pozidriv Flat Hd Csk, M3.50 x 1.3 x 19mm

2шт.
