(74.101.BF[04]) - VAR - 425447 - CROSS FLOW CLEANING SYSTEM PITMAN ARM, RH

Запчасти Case IH 6140 (74.101.BF[04]) - VAR - 425447 - CROSS FLOW CLEANING SYSTEM PITMAN ARM, RH (74) - CLEANING

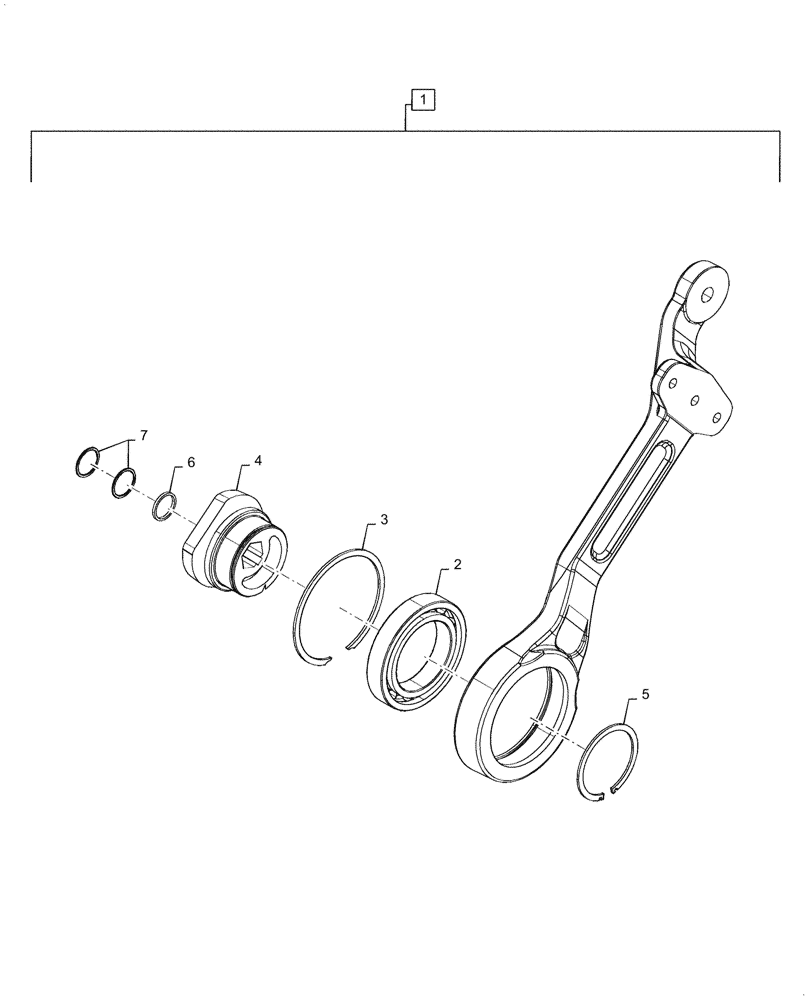

Схема запчастей Case IH 6140 - (74.101.BF[04]) - VAR - 425447 - CROSS FLOW CLEANING SYSTEM PITMAN ARM, RH (74) - CLEANING
2
5
7
6
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47888903

PITMAN

Arm, RH, Incl 2 - 7

1шт.

2

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

1шт.

3

1322624C1

SNAP RING

Internal

1шт.

4

47900948

CAM

Shaker Shaft Pitman Drive

1шт.

5

1979190C1

RETAINER

External

1шт.

6

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

1шт.

7

47941487

SNAP RING

Snap Ring, Internal

2шт.
