(25.310.05[01]) - FINAL DRIVE, PLANETARY MOUNTING HARDWARE - 9010

Запчасти Case IH 7010 (25.310.05[01]) - FINAL DRIVE, PLANETARY MOUNTING HARDWARE - 9010 (25) - FRONT AXLE SYSTEM

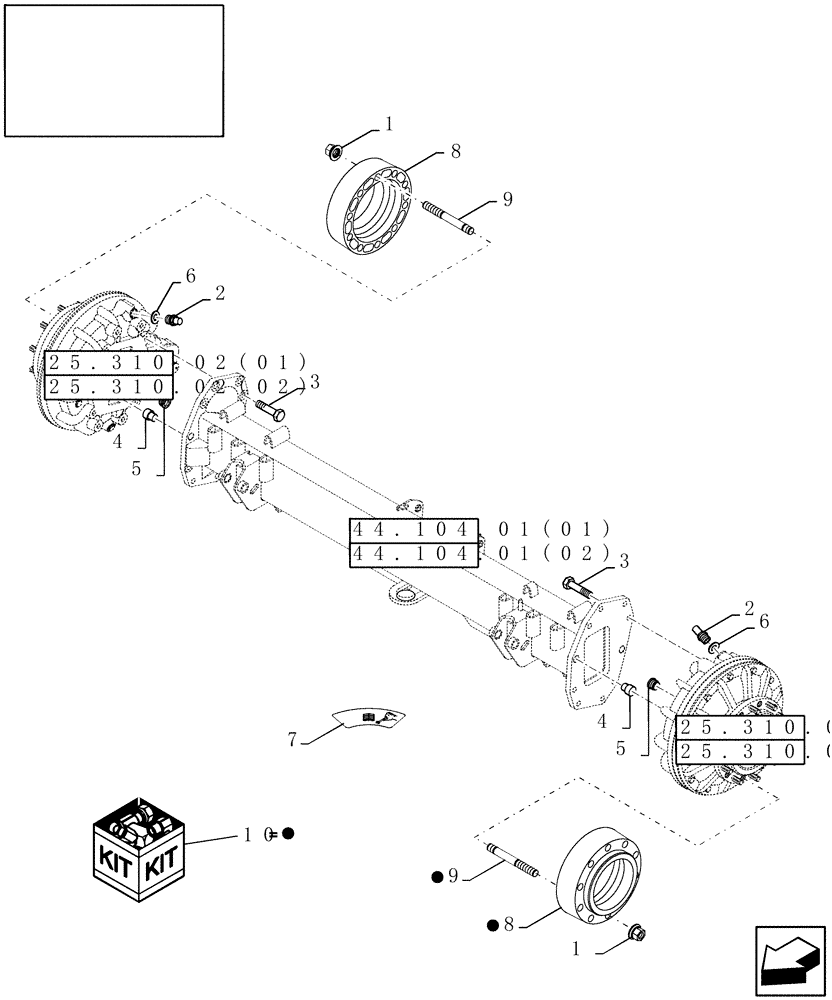

Схема запчастей Case IH 7010 - (25.310.05[01]) - FINAL DRIVE, PLANETARY MOUNTING HARDWARE - 9010 (25) - FRONT AXLE SYSTEM
3
9
6
9
8
2
4
6
25.310.02(01)
44.104.01(02)
44.104.01(01)
25.310.02(02)
25.310.02(01)
25.310.02(02)
1
10
7
5
5
2
1
4
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

748961

WHEEL NUT

20шт.

2

84068655

BREATHER

2шт.

3

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

16шт.

4

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

5

84817215

PLUG,3/4"

2шт.

6

220025

SEALING RING,24.3mm ID x 28.9mm OD x 2mm Thk

SEALRING

2шт.

7

87283497

DECAL

2шт.

8

84989374

SPACER

2шт.

9

84989380

STUD,M22 x 192

20шт.

10

84060286

DIA KIT, HARVESTER

Includes: Ref 8 (2) & Ref 9 (20)

1шт.
