(05.000.02[03]) - BELTS & CHAINS - RIGHT SIDE - 7010

Запчасти Case IH 7010 (05.000.02[03]) - BELTS & CHAINS - RIGHT SIDE - 7010 (05) - SERVICE & MAINTENANCE

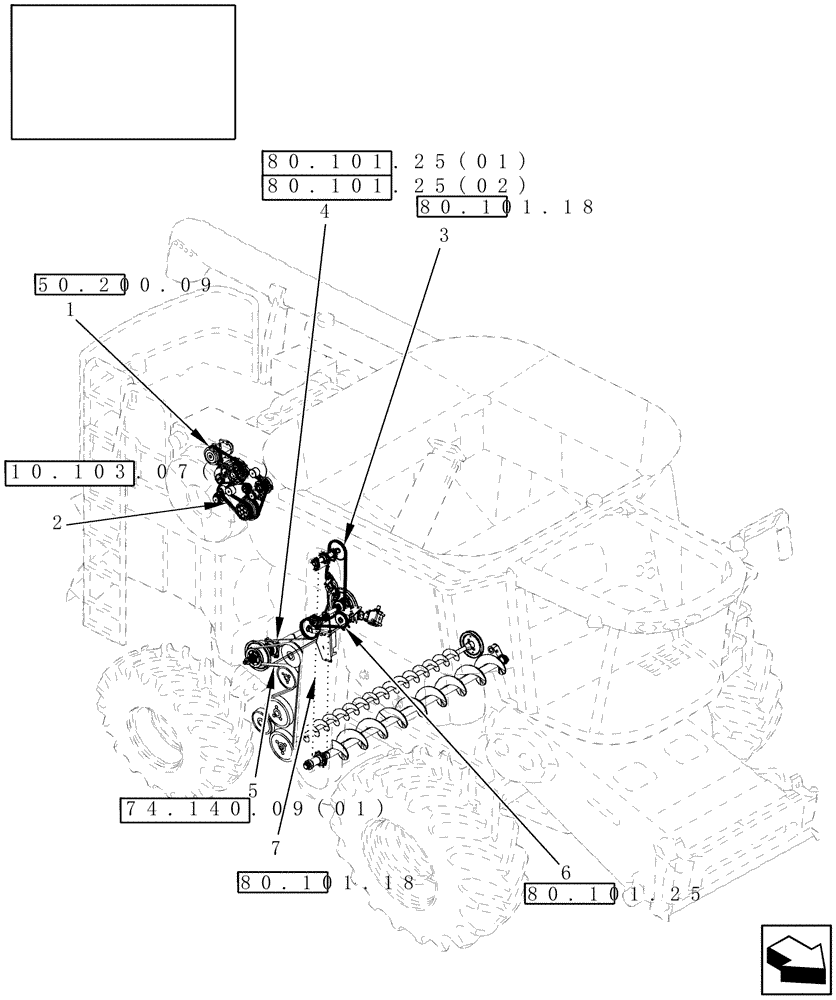

Схема запчастей Case IH 7010 - (05.000.02[03]) - BELTS & CHAINS - RIGHT SIDE - 7010 (05) - SERVICE & MAINTENANCE
2
4
7
3
6
80.101.18
74.140.09(01)
80.101.25(02)
80.101.25(01)
10.103.07(01)
80.101.18
50.200.09
5
80.101.25
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504212528

BELT

A/C

1шт.

2

500371653

BELT

Alternator, Water Pump

1шт.

3

87470737

CHAIN,RC60, 104 Links x 19.05mm = 1981.08mm

Elevator Drive

1шт.

4

86975809

V-BELT,0.88" W x 1844.04mm Nominal Length

Bubble Up Drive

1шт.

5

87283139

V-BELT,4622.8mm Nominal Length

Tailings Processor, HCC

1шт.

6

87470736

CHAIN,RC60, 65 Links x 19.05mm = 1238.3mm

Bubble - Up Drive

1шт.

7

87281911

ELEVATOR CHAIN,CA550HD, 145 Links x 41.4mm = 6003mm

Includes Paddles

1шт.

8

87526140

SET OF BELTS,12.70 mm W x 1595.00 mm L

Engine Fan

1шт.
