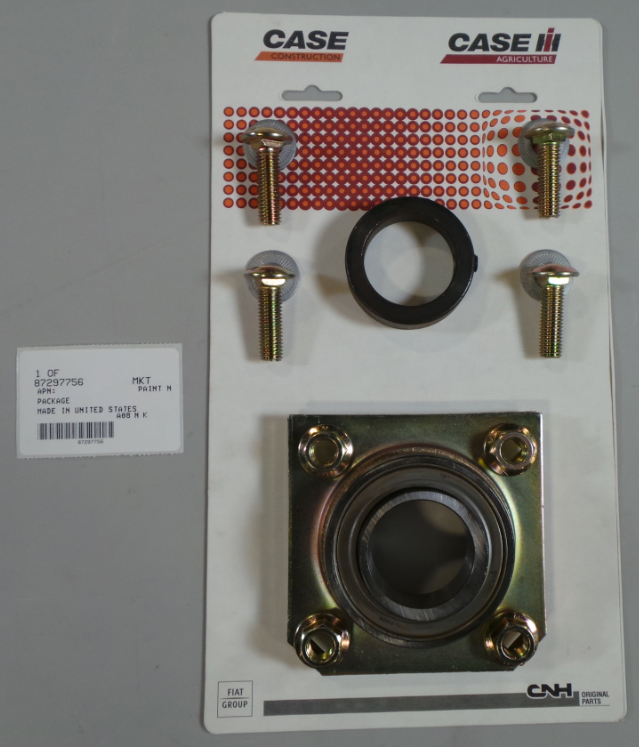

Запчасти Case IH 7010 (88.434.07) - KIT LARGE BEARING CROSS FLOW FAN (88) - ACCESSORIES

1

87297756

KIT

Incl 2 - 7

1шт.

2

133941

BALL BEARING,44.45mm ID x 84.99mm OD x 22mm W

1шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

4

45631

COLLAR

1шт.

5

86979948

FLANGE

2шт.

6

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

4шт.

7

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.
