(10.102.AW) - OIL DRAIN LINE

Запчасти Case IH 7088 (10.102.AW) - OIL DRAIN LINE (10) - ENGINE

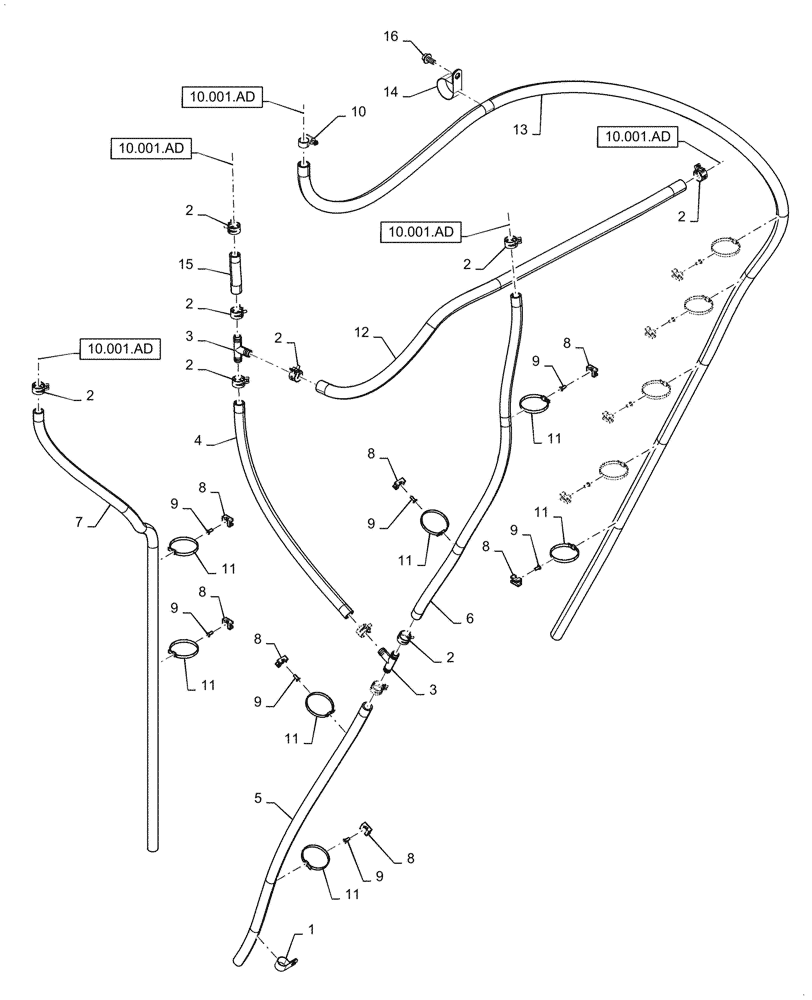

Схема запчастей Case IH 7088 - (10.102.AW) - OIL DRAIN LINE (10) - ENGINE
10.001.ad
11
11
8
14
2
9
2
1
9
4
3
8
5
2
2
11
11
15
12
2
9
10
2
11
7
11
9
6
13
16
9
8
2
3
8
2
11
8
9
8
8
9
10.001.ad
10.001.ad
10.001.ad
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

2

1954736C1

HOSE CLAMP,#24

10шт.

3

1977169C1

TEE

Oil Drain Line

2шт.

4

129096A1

HOSE

Plastic

1шт.

5

87106497

FLEXIBLE HOSE

Lower

1шт.

6

87106496

HOSE

Plastic

1шт.

7

1977293C3

HOSE,15.748mm ID x 1700mm L

Drain and Breather

1шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

11шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

11шт.

10

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

11

306132C1

CABLE TIE,14.5" L

Strap

11шт.

12

87106674

FLEXIBLE HOSE,5/8" ID

Oil Drain

1шт.

13

84170768

Hose, Blow By

1шт.

14

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

15

87107101

FLEXIBLE HOSE,5/8" ID

Plastic

1шт.

16

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

1шт.
