(80.101.21[01]) - BUBBLE-UP AUGER TANDEM GEARBOX, BSN Y9G207858

Запчасти Case IH 7120 (80.101.21[01]) - BUBBLE-UP AUGER TANDEM GEARBOX, BSN Y9G207858 (80) - CROP STORAGE/UNLOADING

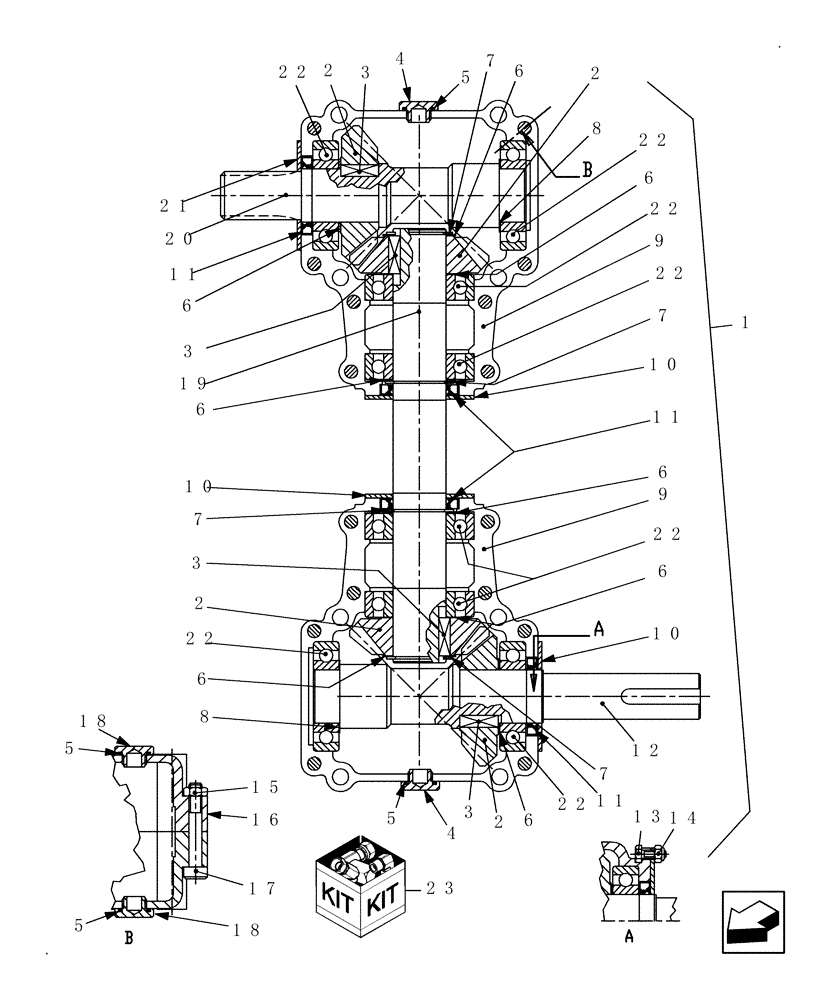

Схема запчастей Case IH 7120 - (80.101.21[01]) - BUBBLE-UP AUGER TANDEM GEARBOX, BSN Y9G207858 (80) - CROP STORAGE/UNLOADING
7
12
16
2
1
2
14
22
20
5
22
4
8
11
23
6
15
9
17
6
8
7
6
11
22
22
22
6
6
9
2
22
3
18
10
10
10
3
2
4
22
18
6
19
6
11
3
5
5
3
21
13
5
6
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86638425

GEARBOX

1шт.

86638425R

REMAN-GEARBOX

7120, BSN Y9G207858 (9/08-2/12), 8120, 9120, Both BSN Y9G207858 (9/08-)

1шт.

86638425C

CORE-GEARBOX

Return Number

1шт.

2

87441215

BEVEL GEAR

Bevel, 18T

4шт.

3

368317

KEY,10mm x 8mm x 25mm

4шт.

4

87452540

DRAIN PLUG

2шт.

5

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

6шт.

6

87039409

SHIM,35mm ID x 45mm OD x 0.5mm Thk

8шт.

7

800-1135

SNAP RING,M35, Ext

4шт.

8

87039408

SHIM,35mm ID x 45mm OD x 0.3mm Thk

12шт.

9

87441214

HOUSING

2шт.

10

87281180

COVER PLATE

3шт.

11

87441213

OIL SEAL,35mm ID x 52mm OD x 7mm Thk

4шт.

12

87441212

SHAFT

Output

1шт.

13

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

14

832-46406

NUT,M6 x 1, Cl 8

8шт.

15

825-1408

NUT,M8, Cl 8

16шт.

16

87441211

HOUSING

Top Half

2шт.

17

864-8055

HEX SOC SCREW,M8 x 55mm, Cl 8.8

16шт.

18

87441210

PLUG

4шт.

19

87441209

SHAFT

1шт.

20

87441208

SHAFT

1шт.

21

87281170

COVER PLATE

30mm

1шт.

22

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

8шт.

23

87282026

SHIM

Kit; Services Refs 6 & 8

1шт.
