(90.118.41[01]) - DECK, REAR - 7120/7120(LA), 8120/8120(LA)

Запчасти Case IH 7120 (90.118.41[01]) - DECK, REAR - 7120/7120(LA), 8120/8120(LA) (90) - PLATFORM, CAB, BODYWORK AND DECALS

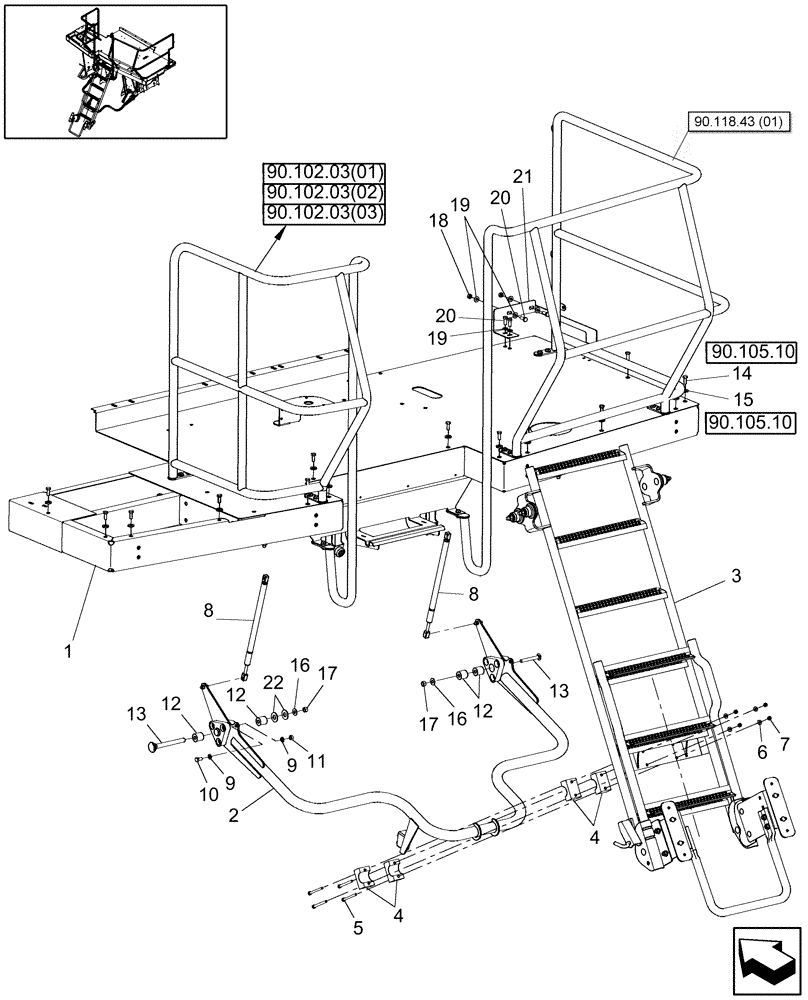

Схема запчастей Case IH 7120 - (90.118.41[01]) - DECK, REAR - 7120/7120(LA), 8120/8120(LA) (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.10
14
22
9
16
20
90.102.03(03)
21
3
7
5
16
4
16
90.102.03(02)
22
12
7
1
20
90.105.10
2
90.102.03(01)
18
12
18
13
1
9
12
6
20
90.102.03(03)
11
12
17
15
90.105.10
5
12
12
8
19
4
90.102.03(01)
8
8
19
13
14
21
9
16
19
20
90.105.10
19
10
13
9
8
3
13
11
2
90.102.03(02)
17
4
17
90.118.43(01)
4
6
10
15
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87591924

PLATFORM ASSY.

1шт.

2

87746846

ARM ASSY.

1шт.

3

87591939

LADDER

1шт.

4

87630671

BLOCK ASSY.

Pivot

2шт.

5

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

4шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

9706690

NUT,M8 x 1.25, Cl 8

4шт.

8

47360439

GAS STRUT

2шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

11

100016

NUT,M10 x 1.5, Cl 8

1шт.

12

87000413

BUSHING,12.7mm ID x 31.75mm OD x 32mm L

4шт.

13

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

2шт.

14

87698794

BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND

PREV Torque, M8 x 25 Full Thd

14шт.

15

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

14шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

17

9706685

NUT,M12 x 1.75, Cl 8

2шт.

18

86500689

NUT,M10 x 1.5, Cl 10

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

21

87475031

BRACKET

1шт.

22

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

2шт.
