1
87567949

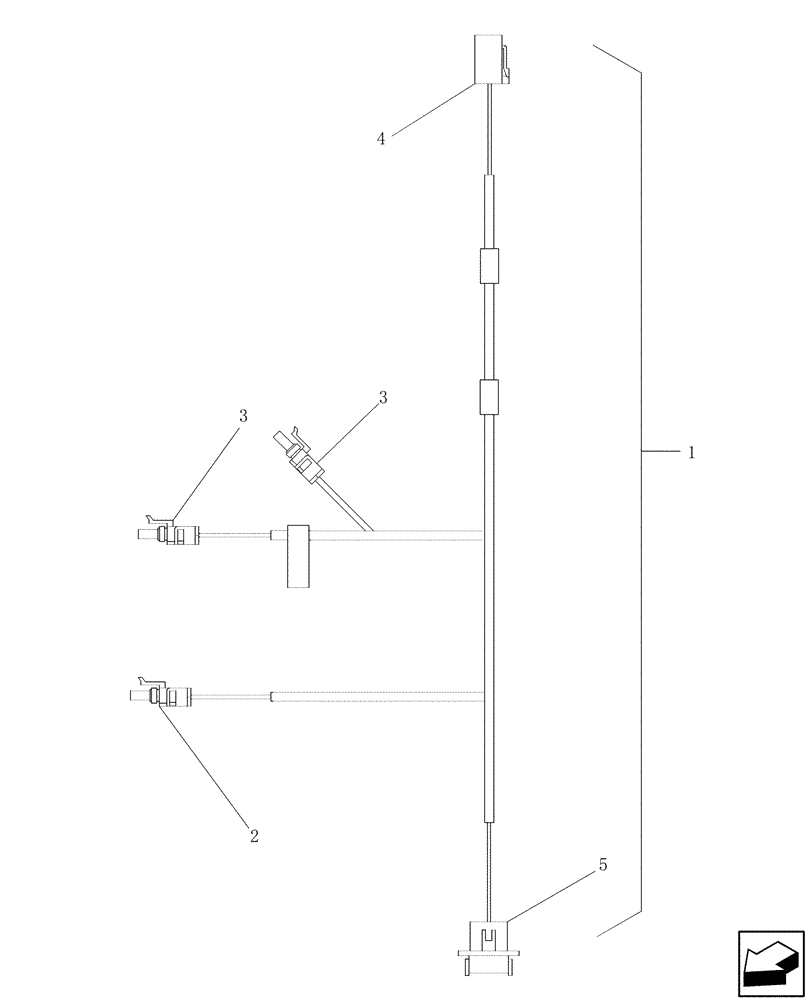

WIRE HARNESS
Grain Tank, Incl 2 - 5
1шт.
2
198435A1
CONNECTOR, ELEC
CONNECTOR C287, 2-Pin, Grain Tank Light
1шт.
3
245484C1
ELEC CONNECTOR,3 Pin
C286, C289, 3-Pin, Grain Tank Full, Grain Tank Almost Full
2шт.
4
NS
NOT SERVICED
C288, 4-Pin
1шт.
5
323464A1
CONNECTOR, ELEC
CONNECTOR C174, 12-Pin
1шт.
6
412064
BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd
4шт.
7
100012
NUT,M4 x 0.7, Cl 8
4шт.
8
86590413
BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk
20шт.
9
445395
RIVET,Pop, 4.8mm OD x 18.1mm L
20шт.
10
86566989
CABLE TIE,208mm L
CABLE STRAP
25шт.
11
87329757
LAMP,Halogen, 12V, 16W, Clear
16 Watt
1шт.
12
87329813
BULB,Halogen, 12.8V, 16W
892, 16 Watt
1шт.
13
625670
GROMMET
1шт.
