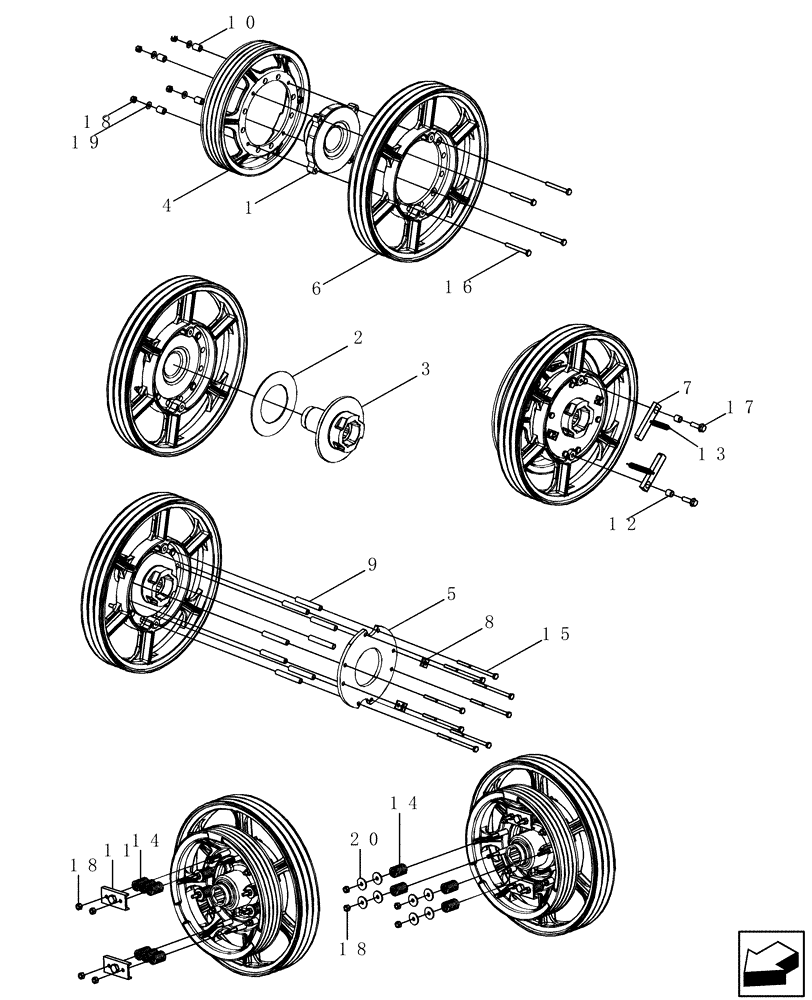

Запчасти Case IH 7130 (60.150.14[02]) - CLUTCH, FEEDER CONVEYOR WITHOUT ROCK TRAP (60) - PRODUCT FEEDING

1

87543658

HOUSING ASSY.

Friction Clutch, Outer

1шт.

2

181579C1

DISC

2шт.

3

84124122

HUB

Clutch, Feeder Conveyor, Inner

1шт.

4

87665207

PULLEY

Feeder Friction Clutch

1шт.

5

87726043

PLATE ASSY.

Outer, Feeder Reverser Clutch

1шт.

6

87729260

PULLEY,573mm OD

Feeder Clutch Outer

1шт.

7

87730813

BAR

Ratchet, Feeder Reverser Clutch

2шт.

8

86988966

MOUNTING PLATE

Spring Mounting

2шт.

9

87386411

SPACER

Feeder Friction Clutch

8шт.

10

87374324

SPACER,11.1mm ID x 19.05mm OD x 25mm L

Drive Lug

4шт.

11

1315316C1

SUPPORT

Slip Clutch Spring Retainer

2шт.

12

87752993

DRIVE BUSHING

Reverser Ratchet

2шт.

13

86989592

SPRING

2шт.

14

1305692C2

SPRING

Feeder Clutch

10шт.

15

87665088

BOLT

8шт.

16

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

17

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.

18

86512554

NUT,M10 x 1.5, Cl 10

12шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

495-81143

WASHER,13/32" x 1 1/2" x .120"

8шт.
