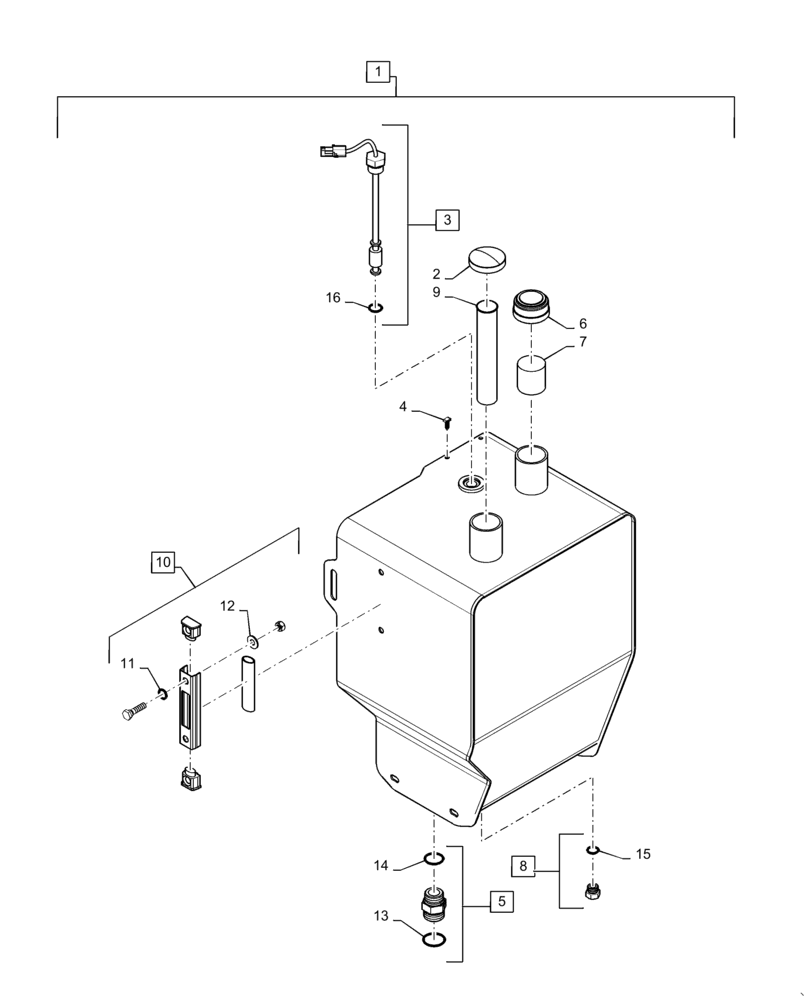

Запчасти Case IH 7140 (35.300.AQ[02]) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

47461992

RESERVOIR, HYDRAULIC

Incl 2 - 12

1шт.

2

87000624

CAP

Reservoir Fill

1шт.

3

87644162

SENSOR

Oil Level, Incl 16

1шт.

4

86017581

FASTENER

Fir Clip

1шт.

5

84190633

CHECK VALVE

In Line Check, Incl 13 - 14

1шт.

6

87000625

COVER

Reservoir W/ Breather Filter

1шт.

7

191116A1

BAFFLE

Fillneck

1шт.

8

214389

PLUG,3/4" - 16 ORB

Incl 15

1шт.

9

104407A1

SCREEN

Filter

1шт.

10

47434248

GAUGE

Level Glass, Incl 11, 12

1шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

12

720060

RUBBER WASHER

13.3mm ID

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
