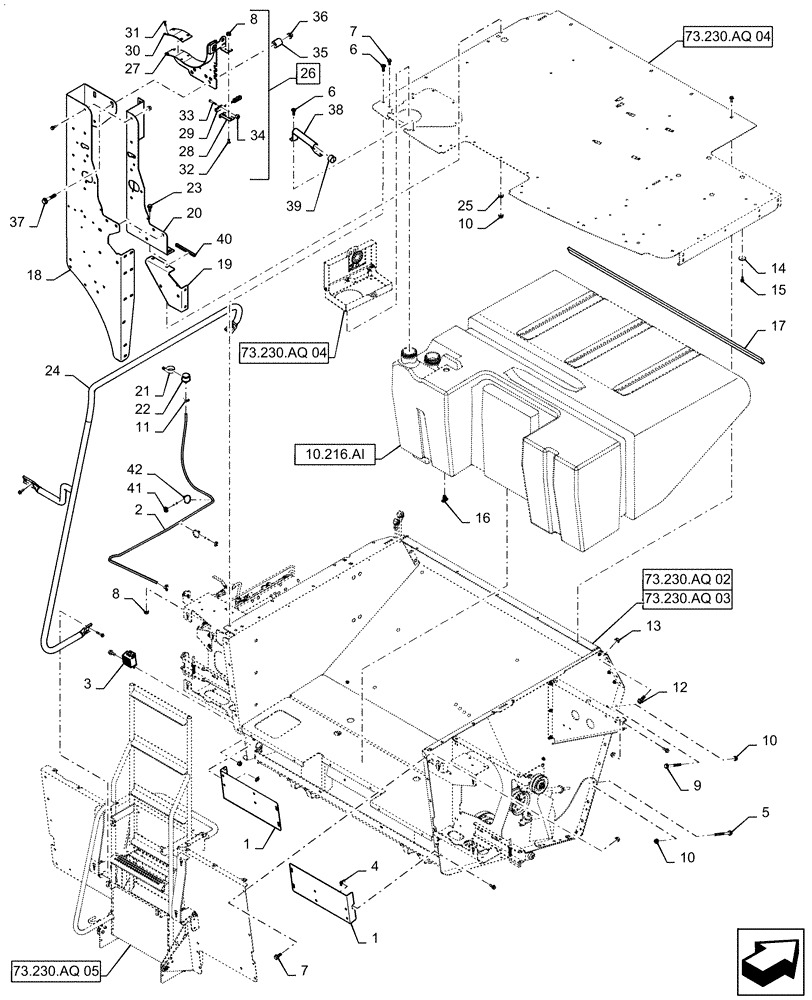

Запчасти Case IH 7140 (73.230.AQ[07]) - REAR HOOD ASSY, TIER 4B (73) - RESIDUE HANDLING

1

87593881

RUNNER

Rear Hood Access, Dark Gray

2шт.

2

87713111

TUBE

Fuel Tank Vent

1шт.

3

L112318

ALARM

Backup

1шт.

4

86508354

PUSH-ON NUT,M8 x 1.25

6шт.

5

87742362

BOLT,M12 x 130mm, Cl 10.9

4шт.

6

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

26шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

33шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

45шт.

9

87698848

FLANGE BOLT,M12 x 120mm, Cl 10.9

10шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

21шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

12

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

15шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

15шт.

14

495-81122

WASHER,.344" x 1 1/2" x .120"

4шт.

15

87698833

BOLT,M8 x 33.1mm, Cl 10.9

10шт.

16

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Fuel Tank

1шт.

17

87727299

FOAM

Insulation

1шт.

18

47551643

SUPPORT

Unloader Saddle, Dark Gray

1шт.

19

47643378

SUPPORT

Support, Unloader Saddle, Dark Gray

1шт.

20

47551646

SUPPORT

Top, LH, Dark Gray

1шт.

21

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

22

86999949

FUEL FILTER

Vent

1шт.

23

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

7шт.

24

47475872

HANDRAIL

Service Deck, LH, Dark Gray

1шт.

25

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

13mm ID x 28mm OD x 5mm Thick

4шт.

26

47382453

SUPPORT

Unloader Tube, Incl 8, 27 - 34

1шт.

27

47382452

SUPPORT

Unloader, Dark Gray

1шт.

28

47535264

BRACKET

Sensor, Dark Gray

1шт.

29

87392235

SENSOR

Reed, Not-Contact, Normally Open

1шт.

30

84402542

WEAR STRIP,76mm W x 155mm OAL x 1.7mm Thk

1шт.

31

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

32

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

33

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

2шт.

34

86632551

NUT,#10-24, GB

2шт.

35

87284863

SPACER,38mm OD x 46mm OAL

38.1mm OD x 46mm L

2шт.

36

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

37

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

2шт.

38

47430015

HANDRAIL

Service Deck Toe Rail, LH, Dark Gray

1шт.

39

87638219

CAP

Vinyl

1шт.

40

291186

PROTECTION STRIP,9.9mm W

Edge Channel

1шт.

41

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

2шт.

42

86566989

CABLE TIE,208mm L

2шт.
