(55.101.AC[15]) - WIRE HARNESS, REAR AXLE, 2 SPEED

Запчасти Case IH 7140 (55.101.AC[15]) - WIRE HARNESS, REAR AXLE, 2 SPEED (55) - ELECTRICAL SYSTEMS

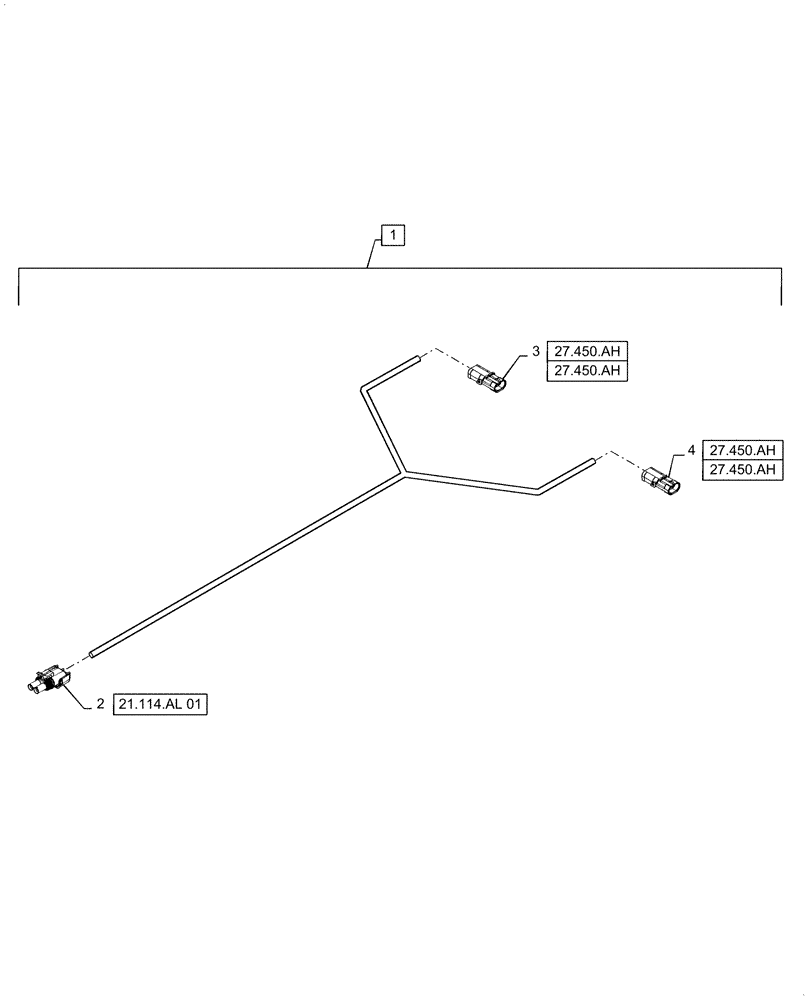

Схема запчастей Case IH 7140 - (55.101.AC[15]) - WIRE HARNESS, REAR AXLE, 2 SPEED (55) - ELECTRICAL SYSTEMS
27.450.ah
2
1
4
3
27.450.ah
27.450.ah
21.114.al 01
27.450.ah
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84280380

WIRE HARNESS

2 Speed Rear Axle, Incl 2 - 4

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Speed High, X-421

1шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2 Speed High Left, X-422

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2 Speed High Right, X-423

1шт.
