(60.130.AJ[02]) - DRIVE, FEEDER DRIVESHAFT, HEAVY DUTY

Запчасти Case IH 7140 (60.130.AJ[02]) - DRIVE, FEEDER DRIVESHAFT, HEAVY DUTY (60) - PRODUCT FEEDING

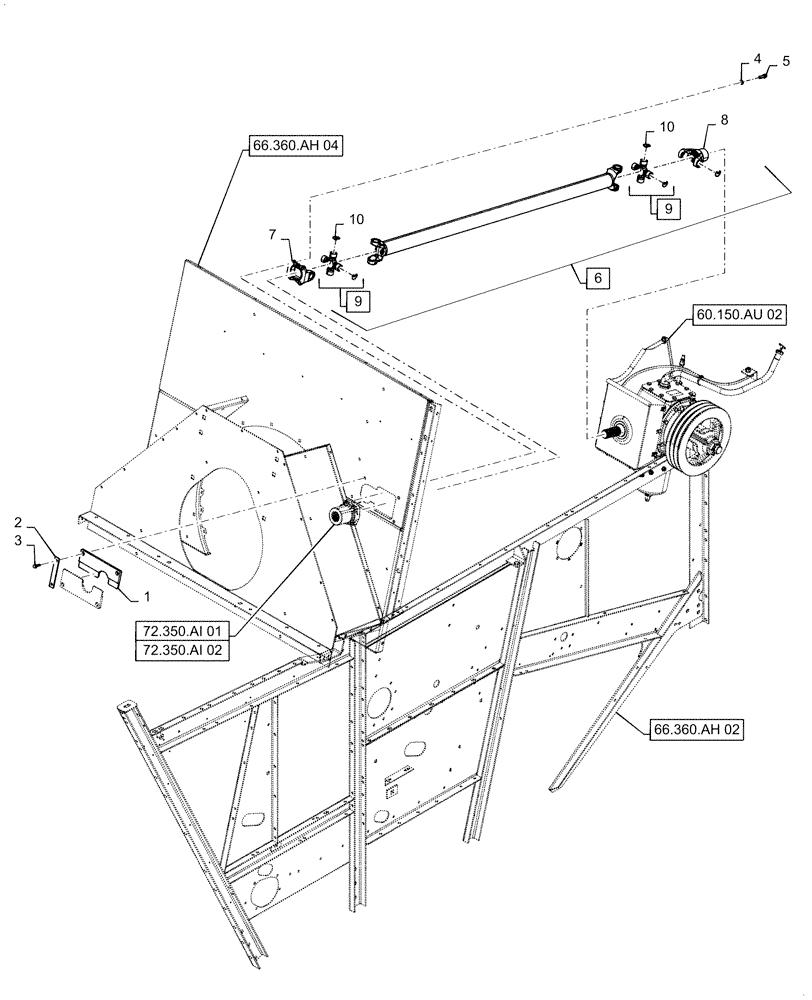

Схема запчастей Case IH 7140 - (60.130.AJ[02]) - DRIVE, FEEDER DRIVESHAFT, HEAVY DUTY (60) - PRODUCT FEEDING
9
10
4
72.350.ai 01
7
3
66.360.ah 02
72.350.ai 02
2
8
9
1
6
60.150.au 02
66.360.ah 04
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87584502

SEAL

Feeder Driveshaft

2шт.

2

87624399

STRAP

Drive Shaft Seal Retainer

2шт.

3

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

4

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

5

87035075

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

6

87597406

DRIVE SHAFT

Separator Jackshaft, Incl 7 - 10

1шт.

7

87600699

YOKE

Slip, 1 9/16" 16T Spline

1шт.

8

87600700

FLANGE

Yoke

1шт.

9

87597409

BEARING ASSY

Universal Joint, Incl 10

2шт.

10

87600698

SNAP RING

Universal Joint

8шт.
