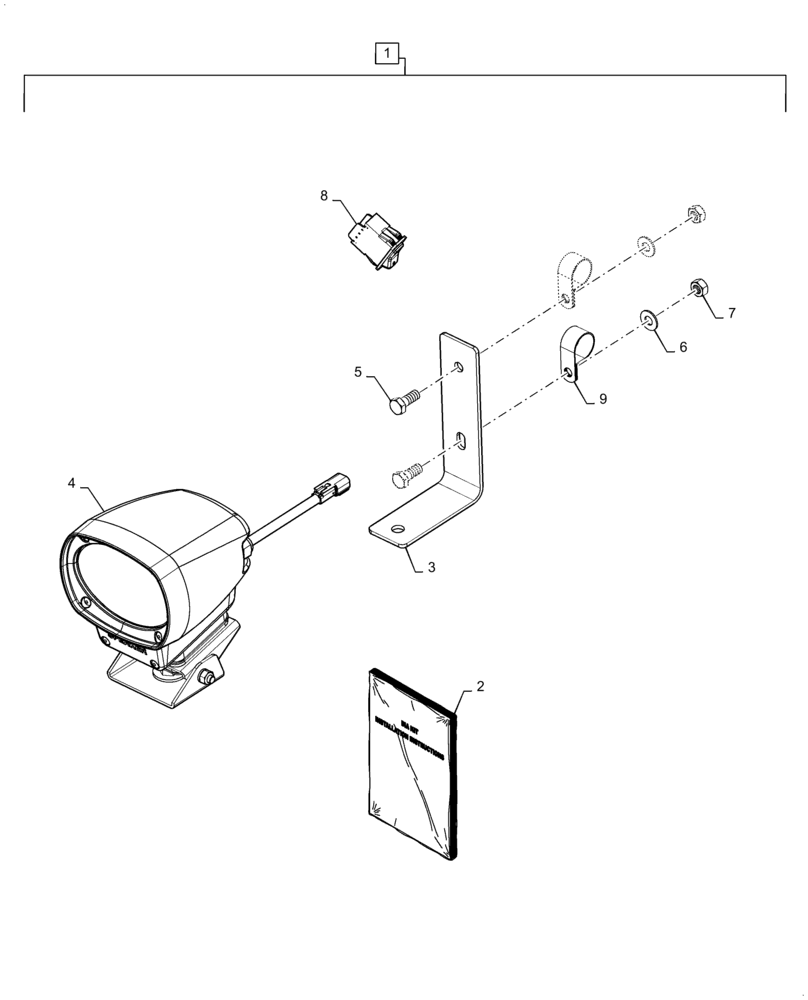

Запчасти Case IH 7140 (88.100.55[01]) - DIA KIT, EXTERNAL LAMP, HID (88) - ACCESSORIES

1

84568165

SERVICE KIT

DIA, HID Distance Lamp, Incl 2 - 9

1шт.

2

84570570

OPERATOR MANUAL

Instruction Sheet

1шт.

3

47407125

BRACKET

Lamp

1шт.

4

87746238

LIGHT ASSY.

HID Distance

1шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

7

86500689

NUT,M10 x 1.5, Cl 10

2шт.

8

84380255

SWITCH

Rocker, HID Spot Lamp

1шт.

9

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

2шт.
