(88.100.80[01]) - DIA KIT, UNLOADING SLOW DOWN

Запчасти Case IH 7140 (88.100.80[01]) - DIA KIT, UNLOADING SLOW DOWN (88) - ACCESSORIES

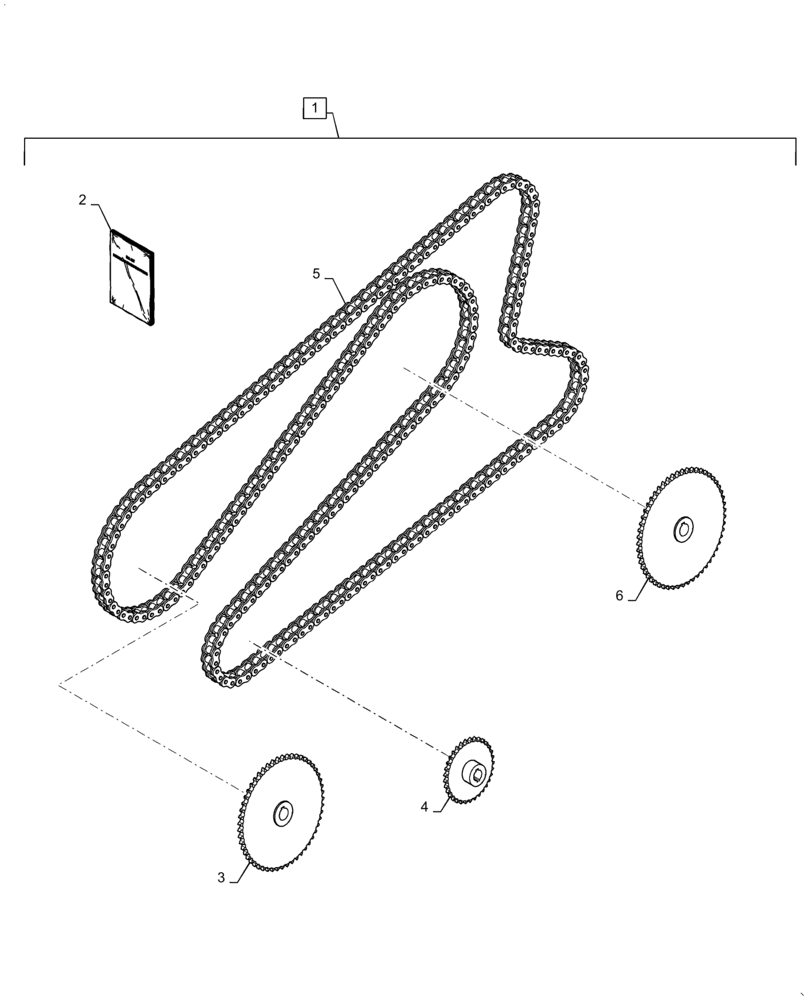

Схема запчастей Case IH 7140 - (88.100.80[01]) - DIA KIT, UNLOADING SLOW DOWN (88) - ACCESSORIES
4
2
1
6
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87710067

DIA KIT, HARVESTER

Unloading Slow Down, Incl 2 - 6

1шт.

2

87716304

INSTRUCTION

Sheet

2шт.

3

87705478

SPROCKET ASSY.

Front Driven, 53T

1шт.

4

87705556

SPROCKET ASSY.,33T

Vertical Driven, 33T

1шт.

5

87707588

CHAIN (AG),60H, 266 Links x 19.05mm = 5067.3mm

Unloader Drive, 2.5 BPS

1шт.

6

87705471

SPROCKET ASSY.

Rear Driven, 55T

1шт.
