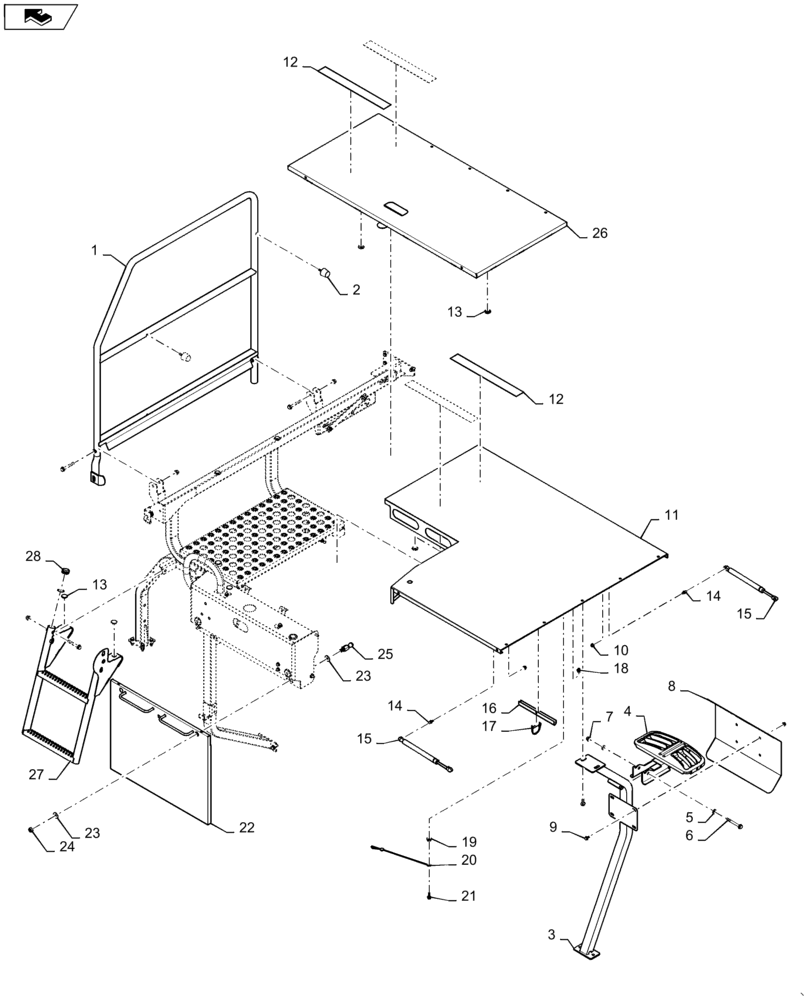

Запчасти Case IH 7140 (90.100.BJ[02]) - COVER, RAIL ASSY, ENGINE SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47428286

HANDRAIL

Engine Deck

1шт.

2

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber

1шт.

3

47377140

SUPPORT

Center Support, Step

1шт.

4

84283959

STEP

Engine

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

6

87695408

BOLT,M10 x 1.5 x 100.4mm OAL, Cl 10.9

1шт.

7

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

8

47625267

SHIELD

Exhaust, Turbo

1шт.

9

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

11

47377204

COVER ASSY

Engine

1шт.

12

401502

ANTI-SKID STRIP

Bulk, Cut to Length

1шт.

13

158188

PLUG,19mm Hole, 28.6mm OD

6шт.

14

83952214

BALL STUD,M8 x 29.5mm OAL

Strut Mount

2шт.

15

84292651

GAS STRUT

Engine Door Lift

2шт.

16

448354A1

BRACKET

Cylinder Lockout

1шт.

17

47431629

PIN

W/ Lock Clip

1шт.

18

86610198

INSERT,M6 x 1

1шт.

19

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

20

409114A1

CABLE

10" Nylon

1шт.

21

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

22

47418899

COVER ASSY

Fan Access

1шт.

23

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

86508813

NUT,M5, Cl 8

4шт.

25

86998687

STUD

Push On Retainer

2шт.

26

84586622

COVER

Rotor Top

1шт.

27

47381991

LADDER

Engine Deck

1шт.

28

47438213

PLUG

Tube, 33.7mm OD

2шт.
