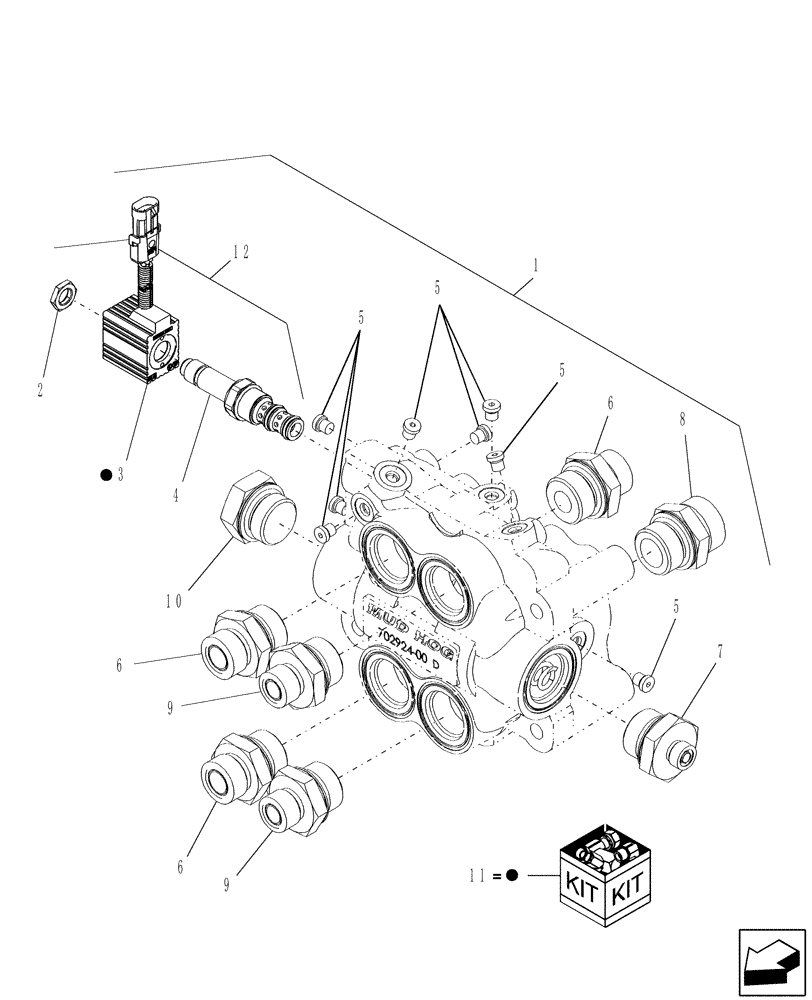

Запчасти Case IH 7230 (27.200.15) - POWERED REAR AXLE, SELECTOR VALVE (27) - REAR AXLE SYSTEM

1

84800289

VALVE

PRA Selector

1шт.

2

590907

NUT

1/2-20, UNF

1шт.

3

87645123

SOLENOID

Coil

1шт.

4

87283662

CARTRIDGE

1шт.

5

86602475

PLUG

-12, O-Ring, Hex Socket

8шт.

6

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

M33 x 2 / -12 ORS

3шт.

7

87281712

HYD CONNECTOR

M33 x 2 / -16 ORS Modified

1шт.

8

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

M33 x 2 / -16 ORS

1шт.

9

87035471

HYD CONNECTOR,1"-14 ORFS x M33 x 1.5 ORB

M33 x 2 / -10 ORS; Incl O-Rings

2шт.

9

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

220069A1

PLUG,M33 x 2, ORB

1шт.

11

86509023

SEAL KIT

Ref 3

1шт.

12

87281710

SOLENOID VALVE

Incl Ref 2, 3 & 4

1шт.
