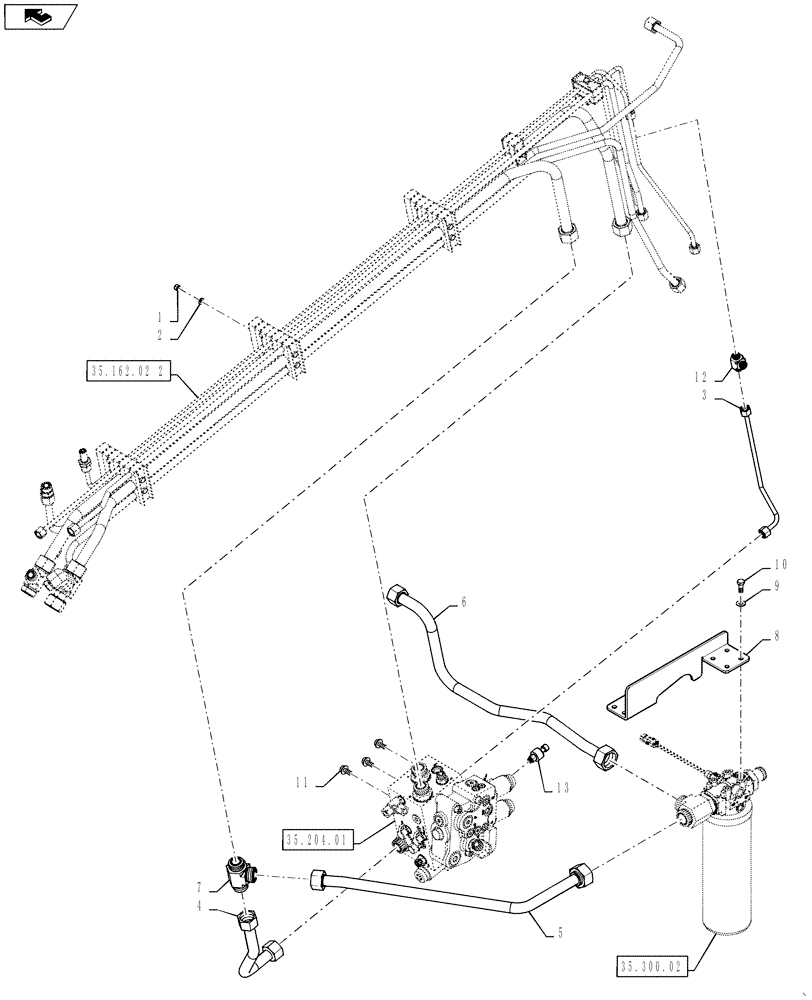

Запчасти Case IH 7230 (35.162.02) - HYDRAULIC MAIN VALVE AND TUBES 7230 (35) - HYDRAULIC SYSTEMS

1

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

3

86995855

HYD TUBE

Load Sense From Main Valve

1шт.

4

86995864

HYD TUBE,1" OD

Return From Main Valve Stack

1шт.

5

86995867

HYD TUBE,1" OD

PFC Return To Filter

1шт.

6

86996178

HYD TUBE,1" OD

Gear Flow To Filter

1шт.

7

86705422

TEE

1шт.

8

87284938

STRAP

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

274249

BOLT,Hex, M10 x 20mm

3шт.

12

9840322

TEE,11/16"-16 ORFS

1шт.

13

84186707

SENSOR

Pressure Sensor

1шт.
