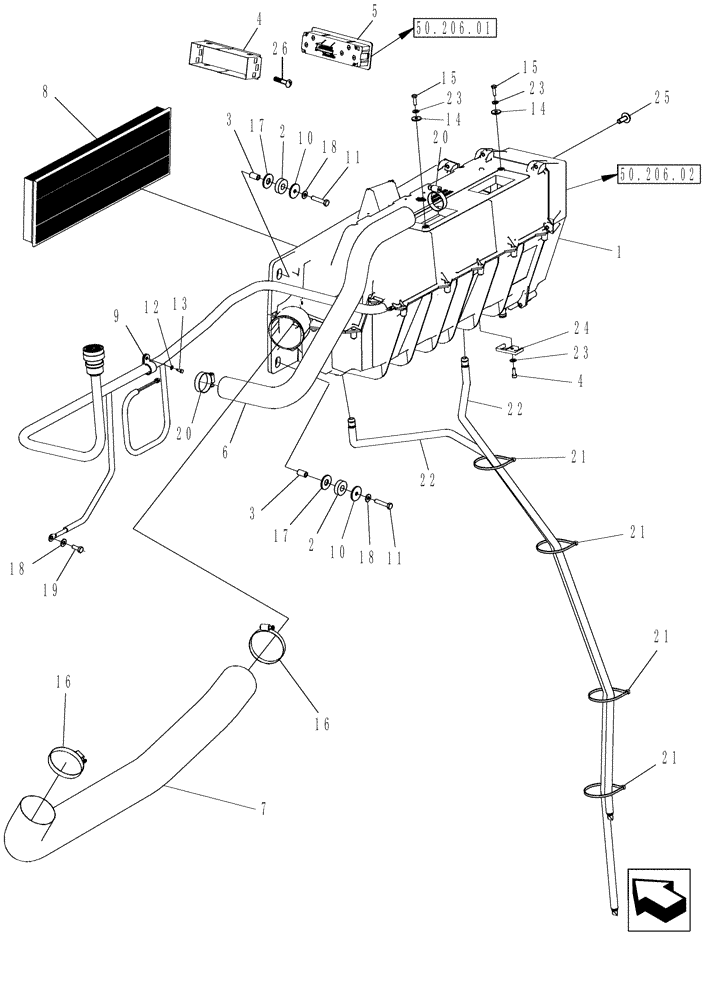

1
0C
ORDER COMPONENTS
A/C Assy, ATC
1шт.
2
87653375
RUBBER WASHER
Rubber
4шт.
3
87653373
SPACER
4шт.
4
87281122
SLEEVE
1шт.
5
87740399
CONTROL PANEL
1шт.
6
86531050
AIR DUCT
A/C Unit To Cab; L = 780 mm, I.D. = 50.8 mm
1шт.
7
86531048
FLEXIBLE HOSE,74mm ID x 1190mm L
Cab Air Filter to A/C Unit
1шт.
8
84058793
AIR FILTER,510mm L x 174mm W x 37.4mm Thk, Paper
Cab, Air Recirculation
1шт.
9
84818444
CLAMP,22.3mm ID, 6.7mm Bolt Hole, P Type
1шт.
10
12646205
WASHER,M8 x 35 x 3
4шт.
11
43129
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
4шт.
12
9824840
WASHER,4.3mm ID x 9mm OD x 0.8mm Thk
1шт.
13
276-1458
SELF-TAP SCREW,Hex Hd, #10 x 1/2"
1шт.
14
140040
WASHER,6.6mm ID x 22mm OD x 2mm Thk
2шт.
15
120100
BOLT,M6 x 20mm, Cl 8.8
2шт.
16
381144
HOSE CLAMP,84.1mm - 107.9mm, Worm Gear
2шт.
17
80700
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
4шт.
18
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
5шт.
19
120104
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
1шт.
20
86624194
HOSE CLAMP,1.81” - 2.75”, Worm Gear
2шт.
21
86566990
CABLE TIE,292mm OAL x 4.8mm W
CABLE STRAP
4шт.
22
86976191
FLEXIBLE HOSE
Incl 87000222 Check Valve And 87000221 Nipple
2шт.
23
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
3шт.
24
87754245
MOUNTING PLATE
1шт.
25
87742364
SCREW,Pan Torx, M6 x 16mm, Cl 8.8
12шт.
26
14305221
HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8
1шт.
