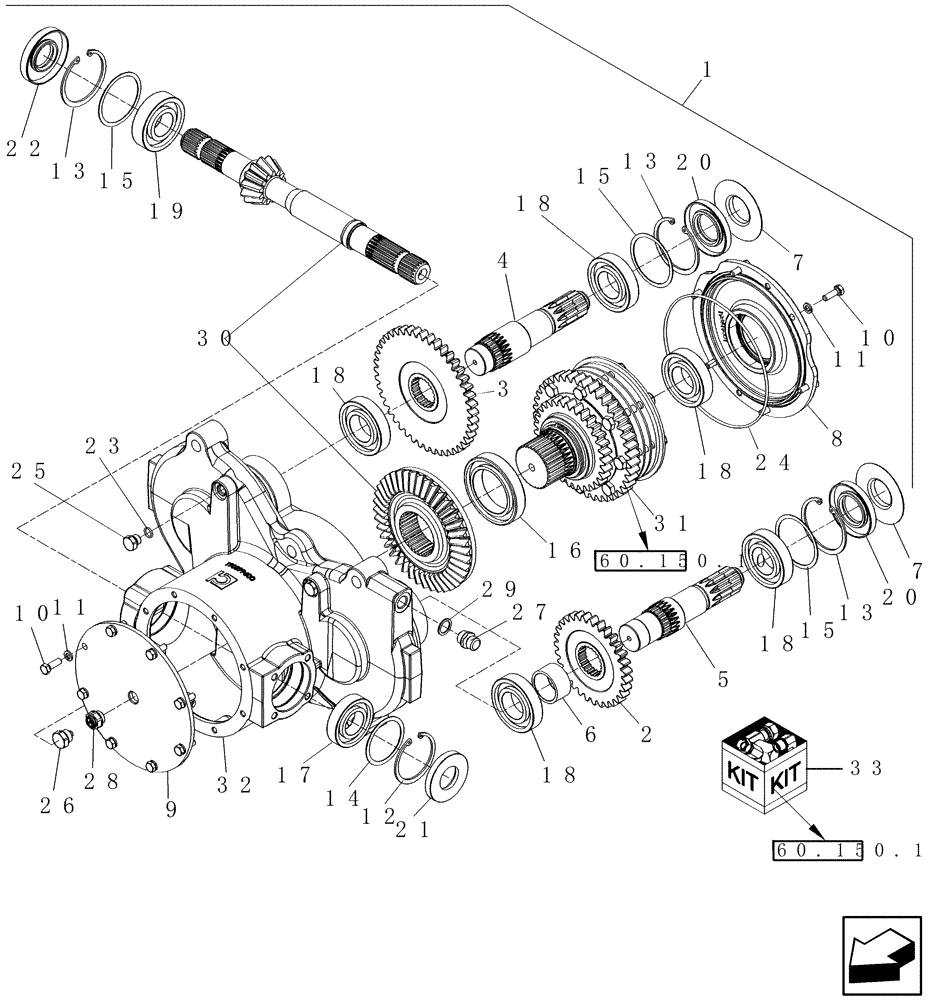

1
84177487
GEARBOX ASSY
700 RPM
1шт.
84177487C
CORE-TRANSMISSION
Return Number, GEARBOX TRANSMISSION - for N.A. Only
1шт.
2
87282001
GEAR
31T
1шт.
3
87696844
GEAR
40T
1шт.
4
87282003
SHAFT
1шт.
5
87536812
SHAFT
1шт.
7
87282006
GUARD
2шт.
8
87696846
COVER
1шт.
9
87282008
COVER
1шт.
10
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
14шт.
11
83990583
LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk
14шт.
12
370018
SNAP RING,M72, Internal
1шт.
13
300633
SNAP RING,M80, Internal
3шт.
14
87282023
SHIM KIT
Kit
1шт.
15
87282025
SHIM KIT
Kit
3шт.
16
5181866
BALL BEARING,65mm ID x 100mm OD x 18mm W
1шт.
17
37203
BALL BEARING,34.99mm ID x 72mm OD x 17mm W
1шт.
18
301164
BALL BEARING,40mm ID x 80mm OD x 18mm Thk
5шт.
19
210048
BALL BEARING,35mm ID x 80mm OD x 21mm W
1шт.
20
87612665
OIL SEAL,38.3mm ID x 80mm OD x 10mm Thk
2шт.
21
87612666
OIL SEAL,35mm ID x 72mm OD x 10mm Thk
1шт.
22
87612667
OIL SEAL,33.3mm ID x 80mm OD x 12mm Thk
1шт.
23
128999
O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
2шт.
24
87345122
O-RING,0.139" Thk x 7.984" ID, -266, Cl 7, 75 Duro
.125 x 8
1шт.
25
220064A1
PLUG,M14 x 1.5, ORB
2шт.
26
87282043
MAGNETIC PLUG
1шт.
27
87282044
PLUG,M18 x 1.5, 28mm L
1шт.
28
87282045
SIGHTGLASS
1шт.
29
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
1шт.
30
87282018
GEAR SET
1шт.
31
84177496
CLUTCH ASSEMBLY
Friction Slip
1шт.
Used W/Gearbox 84177487
1шт.
84177496C
CORE-CLUTCH ASSEMBLY
Return Number, CLUTCH ASSY. - for N.A. Only
1шт.
32
84178330
GEARBOX ASSY
1шт.
Used W/Gearbox 84177487
1шт.
33
84177488
REPAIR KIT
700 RPM Beater Drive Conversion; Includes Ref 2 (87282001), and Gear 87725350
1шт.
