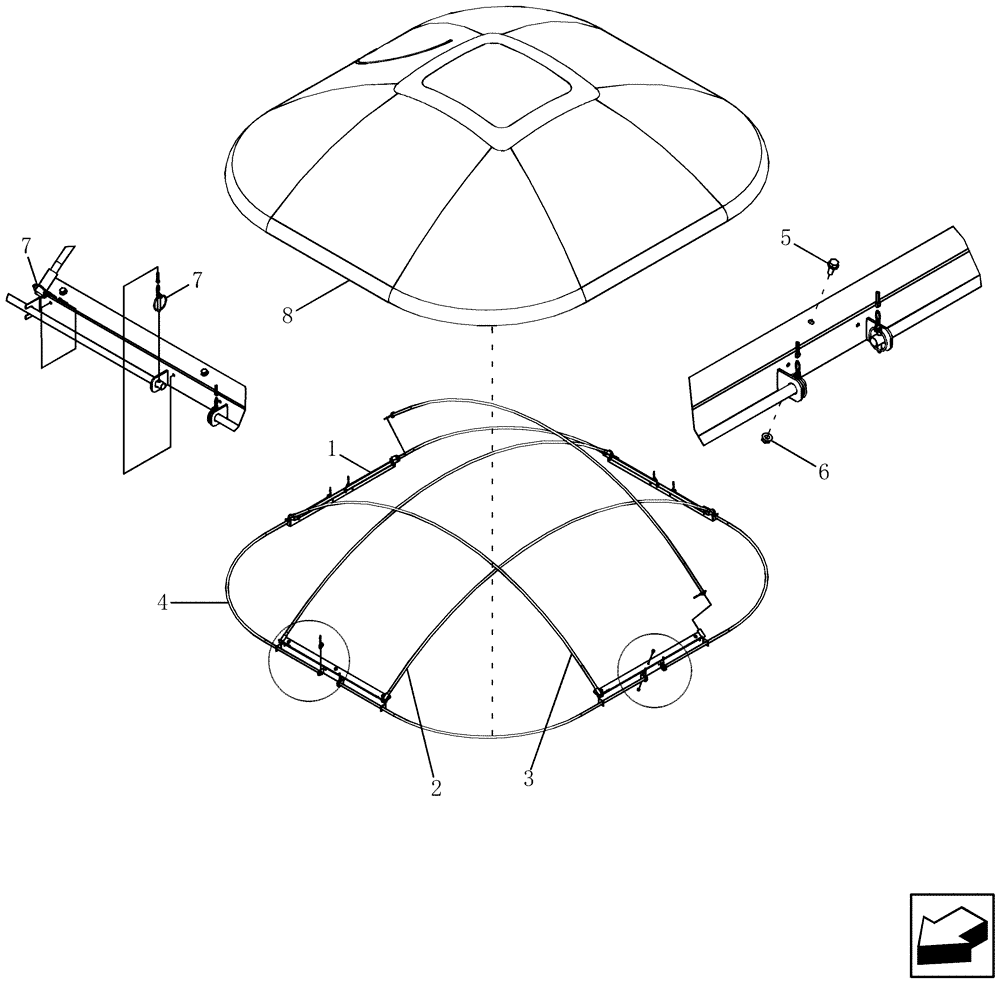

Запчасти Case IH 7230 (88.080.08) - DIA KIT: CANVAS ASSY, GRAINTANK EXT, 315 BU (88) - ACCESSORIES

84175802

SERVICE KIT

DIA, Incl Ref 1-9 7230 NA/ANZ Only

1шт.

1

84154949

SUPPORT ASSY.

4шт.

2

84154940

PIPE

Left Hand, Right Hand

2шт.

3

84154939

PIPE

Front Right, Rear Right

2шт.

4

84154938

PIPE

4шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

12шт.

7

87106279

PIN,6.4mm OD

16шт.

8

84187374

CANVAS

315 Bushel

1шт.

9

84201536

INSTRUCTION

1шт.
