(88.080.13[04]) - DIA KIT: UNLOADING AUGER EXTENSION 1.3M/ 4.4FT STANDARD WEAR, STANDARD CAPACITY

Запчасти Case IH 7230 (88.080.13[04]) - DIA KIT: UNLOADING AUGER EXTENSION 1.3M/ 4.4FT STANDARD WEAR, STANDARD CAPACITY (88) - ACCESSORIES

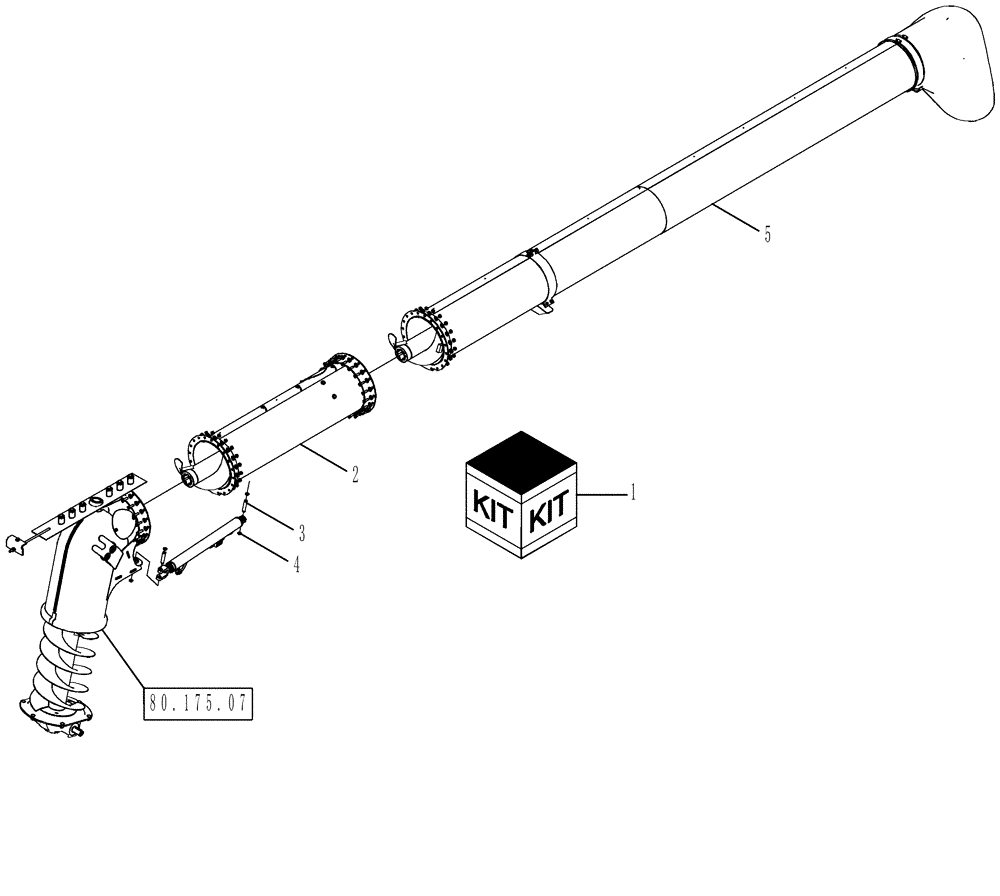

Схема запчастей Case IH 7230 - (88.080.13[04]) - DIA KIT: UNLOADING AUGER EXTENSION 1.3M/ 4.4FT STANDARD WEAR, STANDARD CAPACITY (88) - ACCESSORIES
80.175.07
3
2
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84262399

ADD-ON AUGER EXTENSI

Dia Kit, Unloading Auger Extension 1.3mm / 4.4' NIR Includes Ref 2 - 6

1шт.

2

84256215

AUGER

1шт.

3

84254243

PIN,19.05mm OD x 89mm L

2шт.

4

300627

SNAP RING,M19, External

4шт.

5

84248894

SECURING BAND

1шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.
