(90.105.05[02]) - ENGINE COVERS AND LADDER, MID,7230 T2/T4 CONTINUED

Запчасти Case IH 7230 (90.105.05[02]) - ENGINE COVERS AND LADDER, MID,7230 T2/T4 CONTINUED (90) - PLATFORM, CAB, BODYWORK AND DECALS

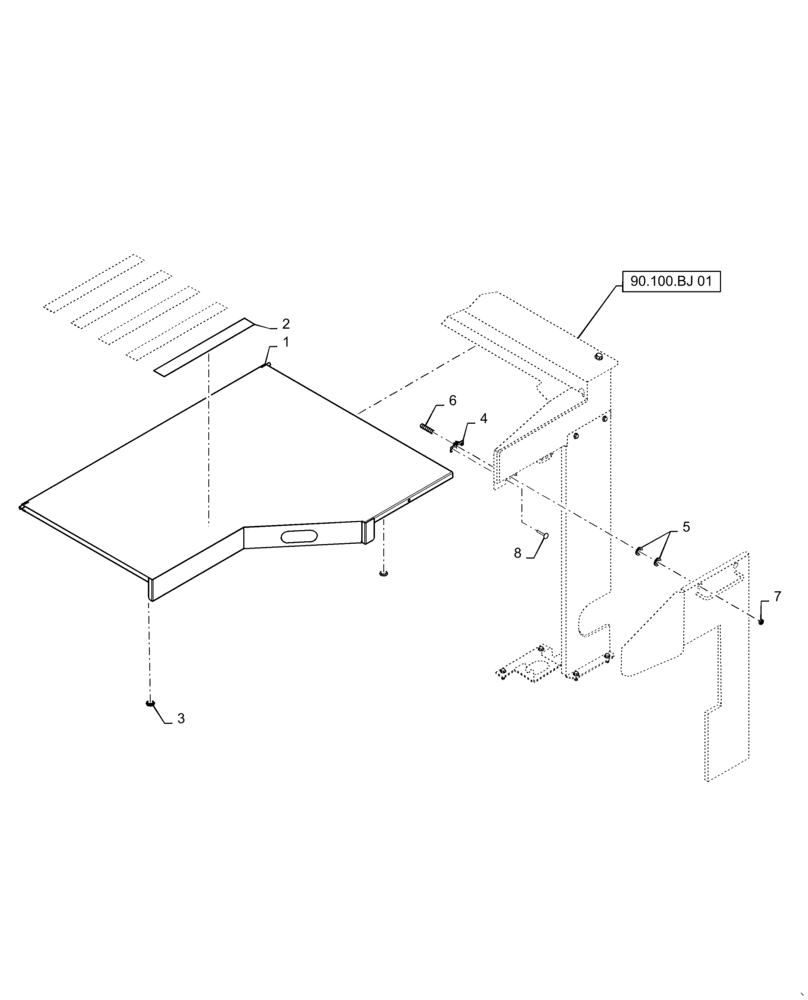

Схема запчастей Case IH 7230 - (90.105.05[02]) - ENGINE COVERS AND LADDER, MID,7230 T2/T4 CONTINUED (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
90.100.bj 01
7
6
8
1
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87555597

COVER ASSY

Engine Deck

1шт.

2

401502

ANTI-SKID STRIP

5 Strips, 450mm OAL Each

1шт.

3

158188

PLUG,19mm Hole, 28.6mm OD

4шт.

4

86998688

LATCH

Skirt Spring

2шт.

5

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

6

86998687

STUD

Ball

2шт.

7

86508813

NUT,M5, Cl 8

2шт.

8

86984400

RIVET,Pop, 1/8" x .400", Stainless

4шт.
