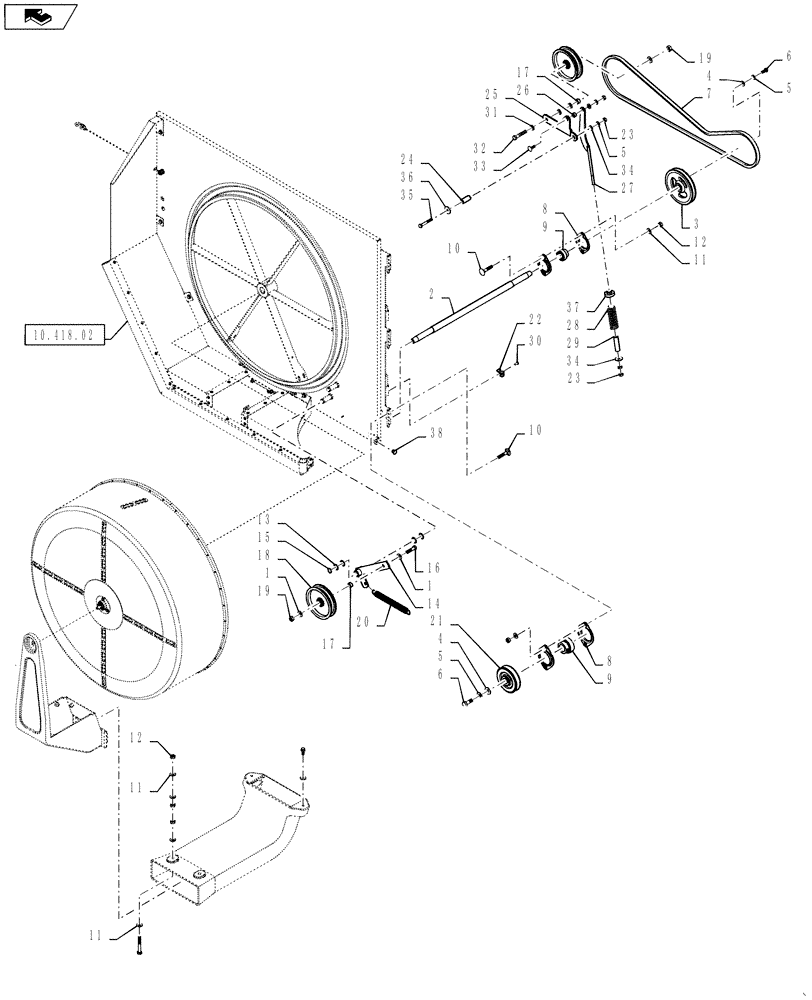

Запчасти Case IH 7230 (10.418.01[02]) - ROTARY AIR SCREEN DRIVE T2/T4 (10) - ENGINE

1

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

2

87526142

COUNTERSHAFT

7230 Only

1шт.

2

87671282

COUNTERSHAFT

82/9230 Only

1шт.

3

84069907

PULLEY,174mm OD

1шт.

4

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

87607871

V-BELT,12.45 mm W x 2190.00 mm L

7230 Only

1шт.

7

87733431

V-BELT,12.45 mm W x 2203.87 L

82/9230 Only

1шт.

8

86548974

FLANGE,Bearing

4шт.

9

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

12

9706690

NUT,M8 x 1.25, Cl 8

4шт.

13

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

14

87552113

ARM ASSY.

2шт.

15

370024

CIRCLIP,M20, Ext

1шт.

16

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

17

84069986

BUSHING,13mm ID x 20mm OD x 11mm L

2шт.

18

87552112

PULLEY

2шт.

19

9706685

NUT,M12 x 1.75, Cl 8

2шт.

20

87647773

SPRING

1шт.

21

87552111

PULLEY

7230 Only

1шт.

21

84989988

PULLEY,90mm OD

82/9230

1шт.

22

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

23

100016

NUT,M10 x 1.5, Cl 8

4шт.

24

87600703

SHAFT

1шт.

25

87600674

SPRING SEAT

1шт.

26

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

27

87602153

LINK

1шт.

28

38902

SPRING

1шт.

29

87602127

SPACER,12.7mm ID x 20.3mm OD x 70mm L

1шт.

30

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

31

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

32

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

33

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

1шт.

34

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

35

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

36

12644301

WASHER,M10 x 35 x 3

2шт.

37

87633160

BUSHING

1шт.

38

331233

PLUG

1шт.
