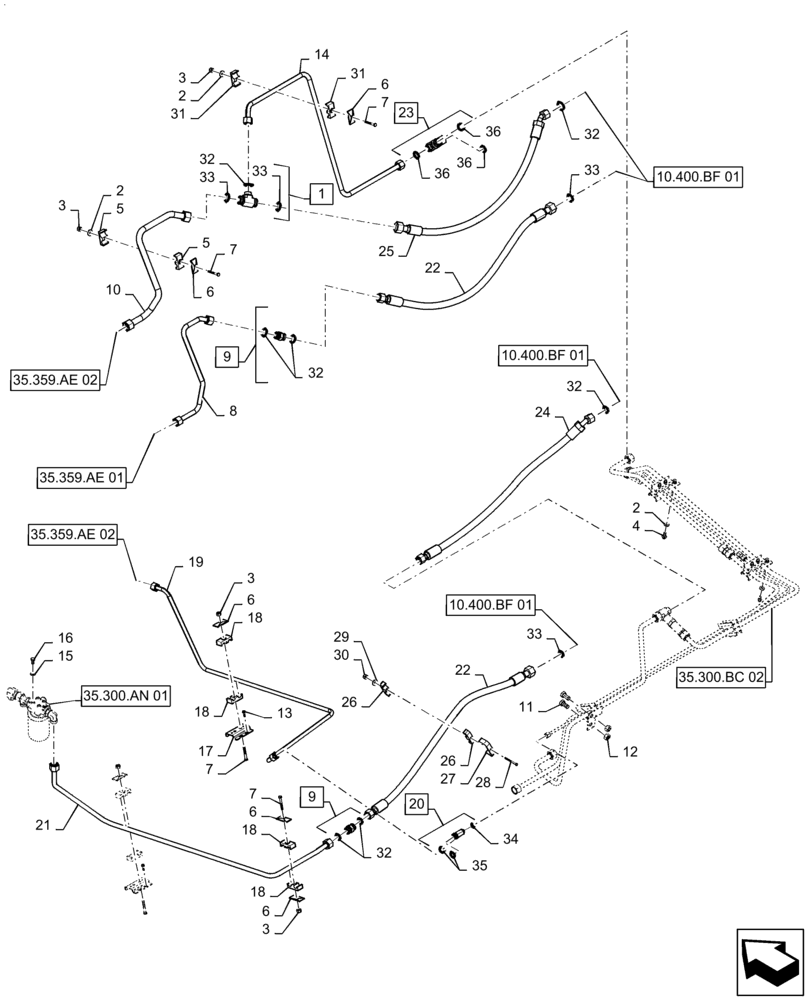

Запчасти Case IH 7230 (35.300.BC[01]) - HYDRAULIC SYSTEM, ENGINE (35) - HYDRAULIC SYSTEMS

1

87000837

TEE

1 7-16" -12 x 1 7/16" -12 x 1 3/16" -12, Incl 32, 33

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

4

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

2шт.

5

87000146

CLAMP

25.4mm x 19.05mm

1шт.

6

87000230

PLATE

Hose Clamp, 9mm ID x 65mm OAL x 30mm Thk

6шт.

7

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

5шт.

8

47392890

HYD TUBE

Main Cooler Outlet

1шт.

9

84100407

UNION,1-3/16"-12 ORFS

Incl 32

2шт.

10

47392889

HYD TUBE

Aux Coole Outlet

1шт.

11

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

12

100020

NUT,M16 x 2.0, Cl 8

2шт.

13

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

4шт.

14

84385216

HYD TUBE

Cleaning Fan Valve Return

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

87109755

BRACKET

Tube Clamp

2шт.

18

87000144

CLAMP

19.05mm x 15.87mm

2шт.

19

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Bulkhead To Tee

1шт.

20

87109744

FITTING

Reducer Tee, Incl

1шт.

21

87397346

TUBE,16 mm ID x 20/0.75 mm OD x 1071.9, 494.5 mm L

Main Cooler Inlet

1шт.

22

87397348

HOSE ASSY.

Main Cooler

2шт.

23

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

ORFS, 20mm

1шт.

24

87397352

HOSE ASSY.

Aux Cooler Inlet

1шт.

25

87397357

HOSE ASSY.

Aux Cooler Outlet

1шт.

26

457547

CLAMP

Hose, 84mm OAL x 20mm W

2шт.

27

743320

SUPPORT

Hose Clamp, Bracket, 96mm OAL

1шт.

28

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

30

353308

NUT,M6 x 1.0, Cl 8

1шт.

31

87000140

CLAMP,Tube, 19.05mm

19.05mm x 19.05mm

2шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

33

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

34

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

36

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.
