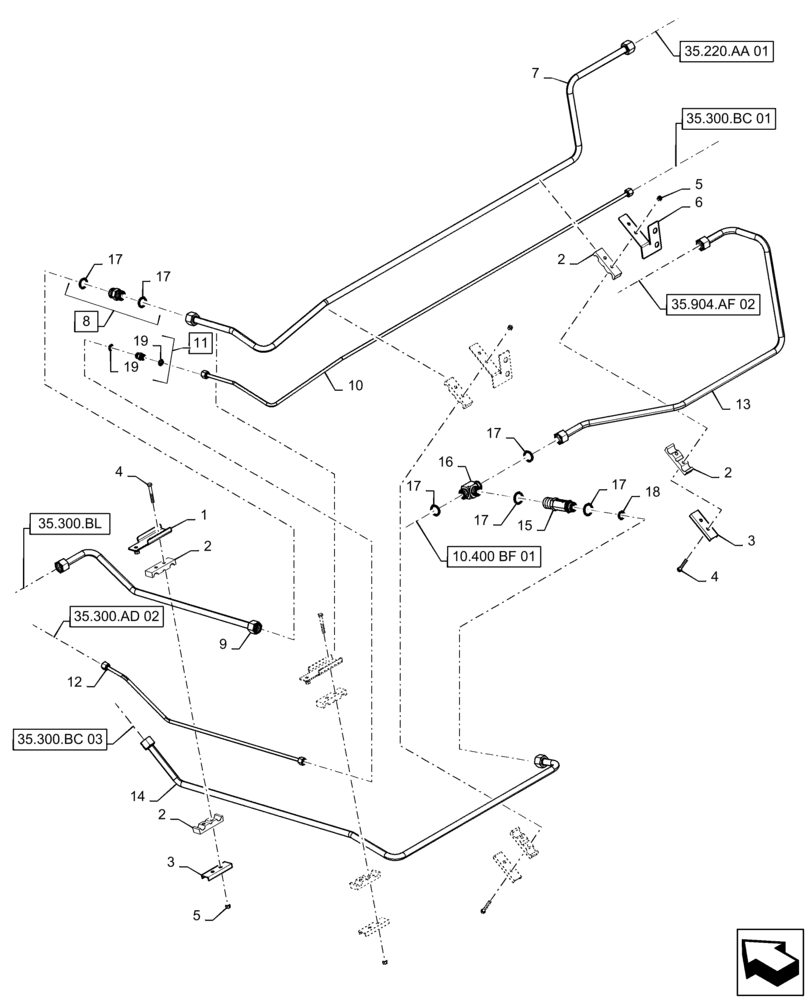

Запчасти Case IH 7230 (35.300.BC[02]) - HYDRAULIC SYSTEM, ENGINE, TUBE (35) - HYDRAULIC SYSTEMS

1

84517700

BRACKET

Tube Clamp

2шт.

2

86998883

CLAMP

Hydraulic Hose, 20mm ID x 10mm ID x 20mm ID x 106mm OAL x 30mm Thk

4шт.

3

87000242

CHANNEL

Clamp Backup

5шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

8шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

6

87000942

BRACKET

Tube Clamp

1шт.

7

84354986

HYD TUBE

Cleaning Fan Pressure

1шт.

8

84100407

UNION,1-3/16"-12 ORFS

Incl 17

1шт.

9

84354991

HYD TUBE

Cleaning Fan Valve Pressure

1шт.

10

84354993

HYD TUBE

Cleaning Fan Drain

1шт.

11

84431546

UNION,11/16"-16 ORFS

Incl 19

1шт.

12

84354996

HYD TUBE

Cleaning Fan Drain

1шт.

13

84169061

HYD TUBE,20 mm OD

Spreader Return

1шт.

14

84355004

HYD TUBE

Aux Cooler Bypass

1шт.

15

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

110 PSI

1шт.

16

87359490

UNION

Tee, 1 3/16" -12

1шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
