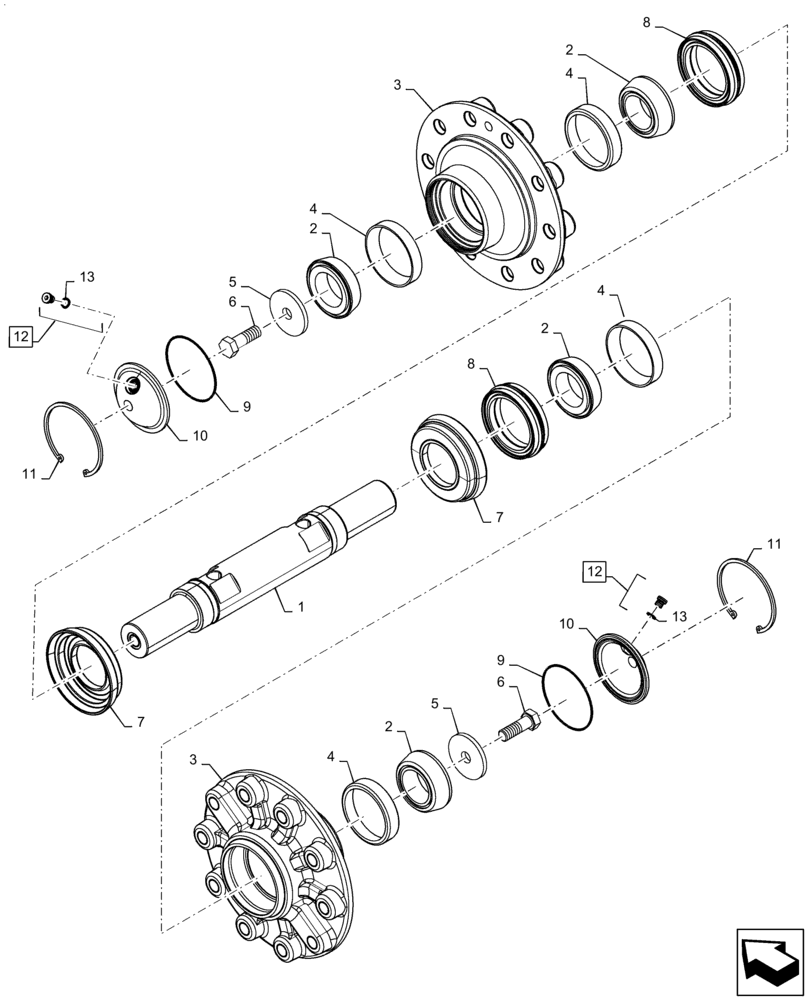

Запчасти Case IH 7230 (48.134.AA[04]) - VAR - 415332 - IDLER, TRACK ASSY, REAR (48) - TRACKS & TRACK SUSPENSION

1

84167370

IDLE SHAFT

Rear Idler

1шт.

2

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

3

84234874

HUB

Rear Idler

2шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

5

87387720

RETAINER

20.65mm ID x 78mm OD x 8.5mm Thk

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

7

87304016

CUP,86mm ID x 154mm OD x 35.8mm Thk

2шт.

8

84573723

SEAL

93.5mm ID x 125.2mm OD x 32.2mm Thk

2шт.

9

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

10

47608296

COVER

Idler, Clear

2шт.

11

370014

SNAP RING,M130, Internal

2шт.

12

86598043

PLUG,M12 x 1.5 ORB

Incl 13

2шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.
