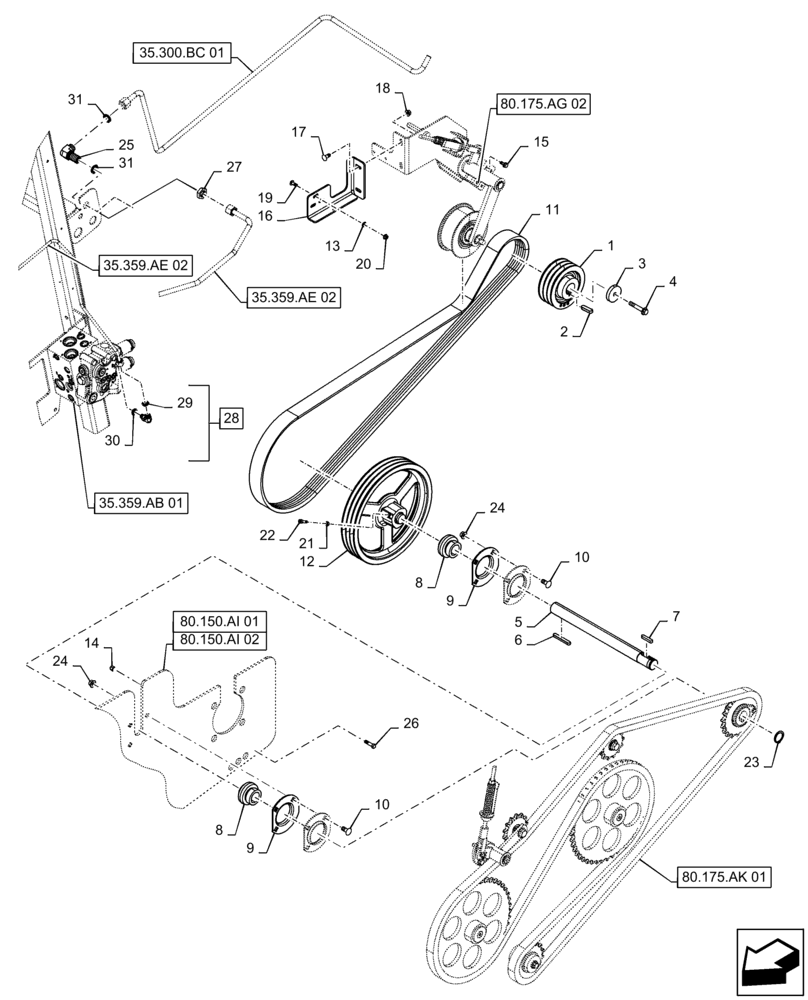

Запчасти Case IH 7230 (80.175.AG[01]) - VAR - 425364 - DRIVE, UNLOADING & FLOW (80) - CROP STORAGE/UNLOADING

1

84370460

PULLEY,165mm OD

Tensioner, 165mm OD x 63.9mm W

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

87698845

BOLT,M12 x 70, Cl 10.9

1шт.

5

84376752

SHAFT

Unloading Drive, 493mm OAL

1шт.

6

170016

KEY

12mm OD x 8mm H x 80mm OAL

1шт.

7

170012

KEY,8mm W x 50mm OAL

2шт.

8

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

2шт.

9

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

Support Bracket

4шт.

10

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

8шт.

11

84376860

BELT

Drive, 3123mm OAL Or 122.95" OAL

1шт.

12

84376715

PULLEY,386mm OD

Unloading Drive, 386mm OD x 84.7mm W

1шт.

13

131-440

PUSH-ON NUT

5/16" Retainer

3шт.

14

88902

NUT,3/8"-16

4шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

16

84348178

BRACKET

Tensioner Support

1шт.

17

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

18

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

19

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

3шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

21

43362

NUT,M8 x 1.25, Cl 10

2шт.

22

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

2шт.

23

300632

SNAP RING,M38, External

1шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

25

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

1шт.

26

246309

SHEAR BOLT

Shear, 1 - 1/2" OAL x 3/8" Thread

4шт.

27

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

28

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 29 - 30

1шт.

29

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
