(90.110.AU[07]) - BRACKET, TRIM PANEL, REAR FRAME, RH

Запчасти Case IH 7230 (90.110.AU[07]) - BRACKET, TRIM PANEL, REAR FRAME, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

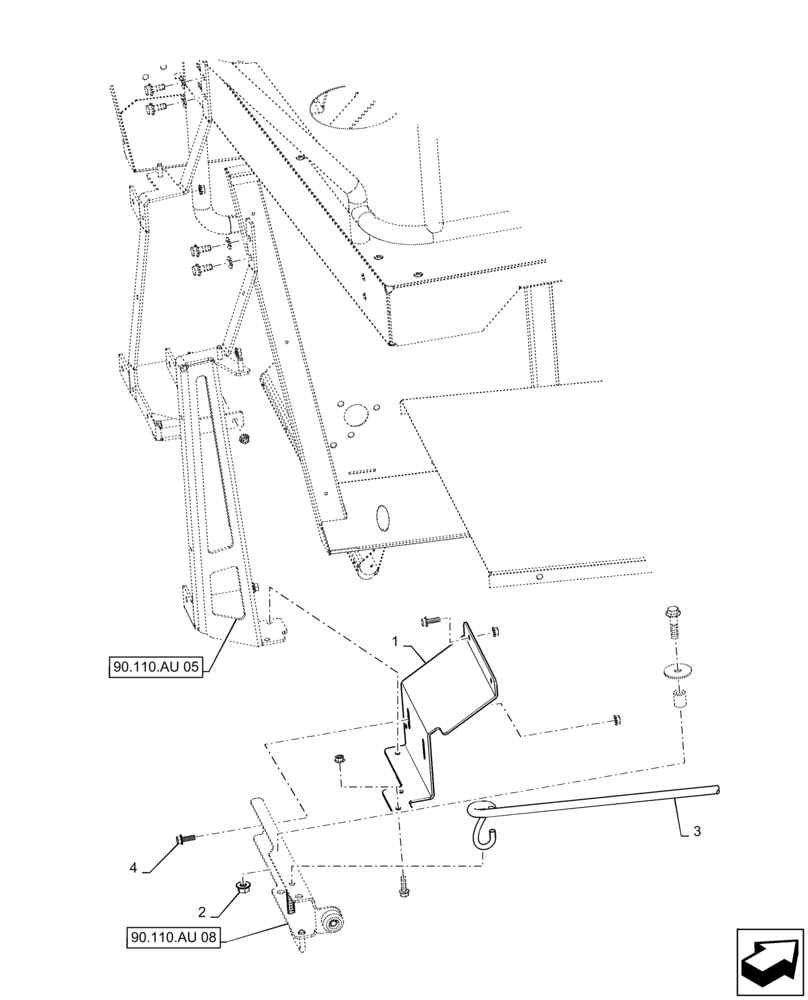

Схема запчастей Case IH 7230 - (90.110.AU[07]) - BRACKET, TRIM PANEL, REAR FRAME, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
1
4
90.110.au 08
90.110.au 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84183848

BRACKET

Rear Support

1шт.

2

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

3

84130952

ROD

Rear Door Hold, RH

1шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.
