(55.130.AR[03]) - TRAILER HITCH WIRE HARNESS & CONNECTOR

Запчасти Case IH 7240 (55.130.AR[03]) - TRAILER HITCH WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

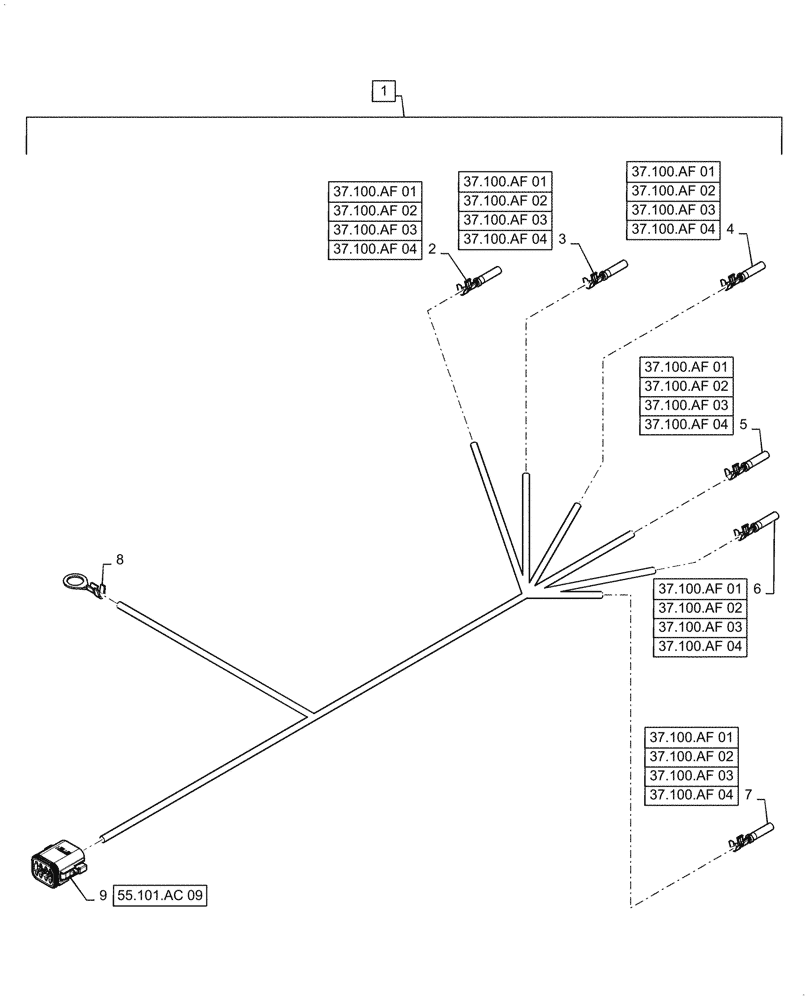

Схема запчастей Case IH 7240 - (55.130.AR[03]) - TRAILER HITCH WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS
37.100.af 01
6
4
7
3
9
1
5
8
2
37.100.af 03
37.100.af 03
37.100.af 03
37.100.af 03
37.100.af 03
37.100.af 03
37.100.af 01
55.101.ac 09
37.100.af 04
37.100.af 04
37.100.af 04
37.100.af 04
37.100.af 04
37.100.af 04
37.100.af 02
37.100.af 02
37.100.af 02
37.100.af 02
37.100.af 02
37.100.af 02
37.100.af 01
37.100.af 01
37.100.af 01
37.100.af 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47501357

WIRE HARNESS

Trailer Hitch, Incl 2 - 9

1шт.

2

47486974

TERMINAL

Trailer Plug, J-09_L

1шт.

3

47486974

TERMINAL

Trailer Plug, J-09_R

1шт.

4

47486974

TERMINAL

Trailer Plug, J-09_54

1шт.

5

47486974

TERMINAL

Trailer Plug, J-09_58R

1шт.

6

47486974

TERMINAL

Trailer Plug, J-09_58L

1шт.

7

47486974

TERMINAL

Trailer Plug, J-09_31

1шт.

8

84127303

TERMINAL

Ground, X-952

1шт.

9

84281914

ELEC CONNECTOR

Straw Hood, X-285

1шт.

9

84806312

LOCKING TAB,Wedge Lock

Straw Hood, X-285

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Straw Hood, X-285

4шт.
