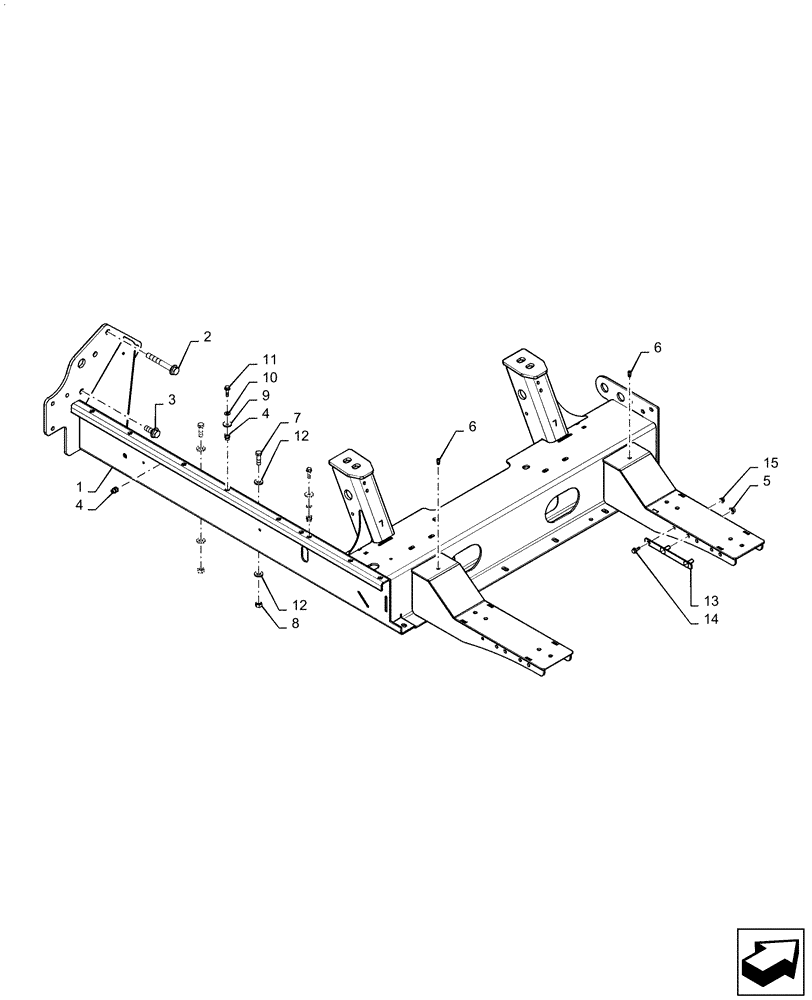

Запчасти Case IH 7240 (10.001.AK[01]) - ENGINE MOUNT, FRAME (10) - ENGINE

1

47358899

FRAME

Engine

1шт.

2

87698807

BOLT,Hex, M16 x 120mm, Cl 10.9

3шт.

3

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

3шт.

4

86610201

INSERT,M8

12шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

6

84578718

RIVET,Flng, 9mm OD x 18mm L

2шт.

7

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

12шт.

8

9706685

NUT,M12 x 1.75, Cl 8

12шт.

9

140041

WASHER,M8 x 28mm OD x 3mm Thk

7шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

11

87030775

BOLT,M8 x 38.1mm, Cl 10.9

7шт.

12

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

24шт.

13

47684498

SUPPORT

Suction Fan Mount

1шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.
