(55.101.AC[02]) - WIRE HARNESS, FRAME, RH

Запчасти Case IH 7240 (55.101.AC[02]) - WIRE HARNESS, FRAME, RH (55) - ELECTRICAL SYSTEMS

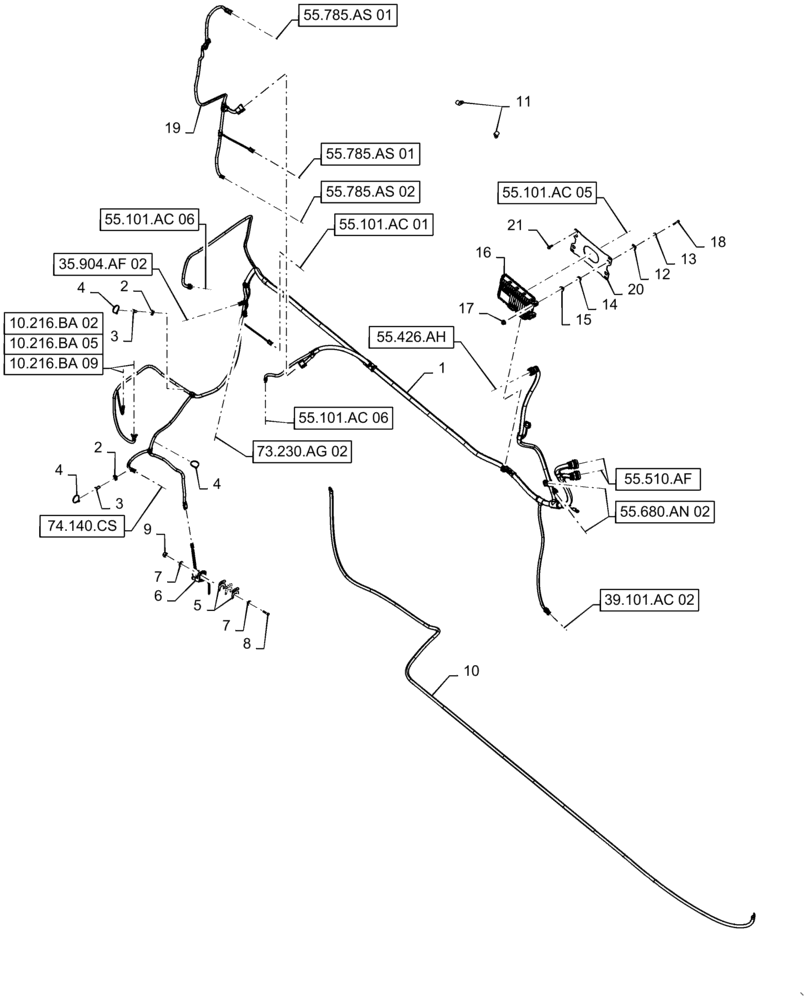

Схема запчастей Case IH 7240 - (55.101.AC[02]) - WIRE HARNESS, FRAME, RH (55) - ELECTRICAL SYSTEMS
10.216.ba 09
4
55.785.as 01
3
55.101.ac 06
16
55.510.af
55.101.ac 05
21
2
14
35.904.af 02
10
10.216.ba 02
39.101.ac 02
55.426.ah
55.101.ac 01
7
4
19
55.101.ac 06
2
9
73.230.ag 02
13
6
55.680.an 02
18
10.216.ba 05
12
7
20
11
55.785.as 01
1
74.140.cs
3
4
55.785.as 02
5
8
17
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47884947

WIRE HARNESS

Main Frame, RH

1шт.

2

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

19шт.

3

445394

RIVET,Pop, 3/16" x 1/2" OAL

19шт.

4

86566989

CABLE TIE,208mm L

30шт.

5

87494198

ADJUSTING PLATE

52mm W x 60mm OAL

3шт.

6

84212481

SENSOR

Tailings Auger Speed/Volume

1шт.

7

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

10

47700973

CABLE

Ground, A/C Compressor to Frame

1шт.

11

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

12

87672920

RUBBER SEAL,19mm ID x 30mm L x 3mm Thk

19mm ID x 30mm OD x 25mm W x 3mm Thk

4шт.

13

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

4шт.

14

47131603

PAD,14mm ID x 26mm OD x 8mm Thk

Elastic Plug

4шт.

15

47131590

SPACER,8.5mm ID x 26mm OD x 10mm Thk

Washer

4шт.

16

47398072

MODULE

H Bridge

1шт.

17

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

18

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

4шт.

19

47591310

WIRE HARNESS

Clean Grain Elevator/ Moisture Meter

1шт.

20

47411578

PLATE

Support

1шт.

21

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.
