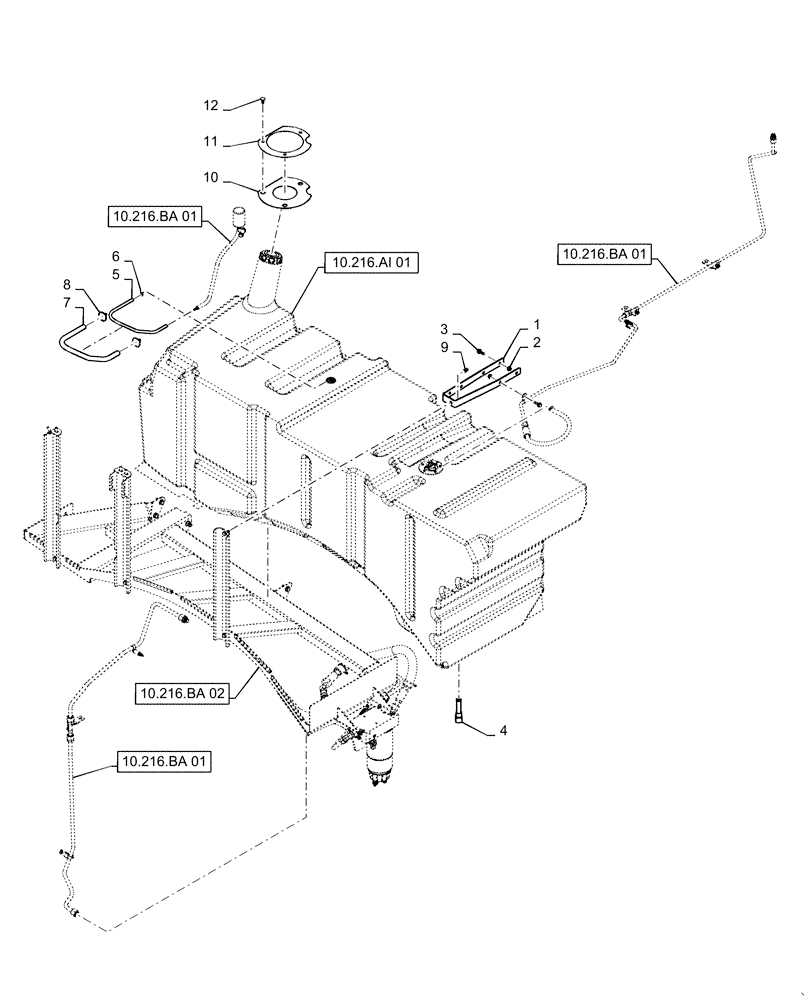

Запчасти Case IH 7240 (10.216.BA[03]) - FUEL TANK, FUEL LINE (10) - ENGINE

1

47698200

SUPPORT

Bracket, Fuel Tank Front

1шт.

2

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

3

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

4

47393252

FILTER STRAINER

Fuel Suction, 30 Mesh

1шт.

5

84302861

HOSE

Fuel Vent, 6.35mm ID x 12.7mm OD x 510mm L

1шт.

6

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

7

47581905

SLEEVE

Protective, Fuel Vent Hose, 17.5mm ID x 27.2mm OD x 500mm L

1шт.

8

86566989

CABLE TIE,208mm L

2шт.

9

47439691

NUT,M10 x 1.5

1шт.

10

47583625

SEAL

Rubber, Fuel Neck

1шт.

11

47597570

RETAINER

Fuel Neck Seal

1шт.

12

47551475

FASTENER

Push - In, Tree

3шт.
