(33.202.05[01]) - SERVICE BRAKES - PRIOR TO PIN HAJ202001 - 7010/8010

Запчасти Case IH 8010 (33.202.05[01]) - SERVICE BRAKES - PRIOR TO PIN HAJ202001 - 7010/8010 (33) - BRAKES & CONTROLS

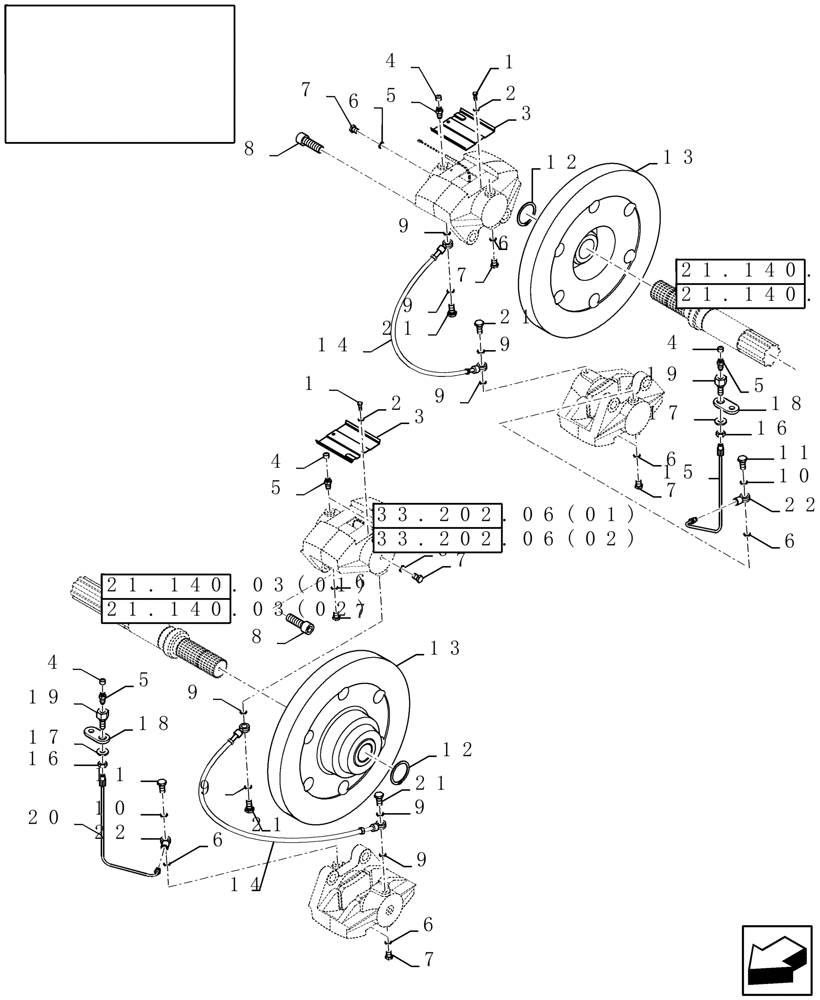

Схема запчастей Case IH 8010 - (33.202.05[01]) - SERVICE BRAKES - PRIOR TO PIN HAJ202001 - 7010/8010 (33) - BRAKES & CONTROLS
3
18
8
1
9
5
17
5
33.202.06(01)
21.140.03(02)
21.140.03(01)
21.140.03(02)
21.140.03(01)
33.202.06(02)
7
4
6
16
9
21
9
21
13
4
6
9
2
19
3
4
16
9
6
10
4
21
6
6
5
21
1
9
2
10
20
8
18
15
9
6
22
7
5
9
12
11
19
11
6
17
22
6
7
7
7
13
12
7
14
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

4шт.

2

80322356

WASHER

M5

4шт.

3

84004317

PLATE

2шт.

4

89835349

CAP

Seal

6шт.

5

89832308

SCREW

Vent

6шт.

6

84439102

SEALING WASHER,10mm ID x 16mm OD x 1.5mm Thk

10шт.

7

89832307

SCREW

Sealing

8шт.

8

89817243

SCREW

Cylinder Head

8шт.

9

84449206

RING,10.2mm ID x 13.4mm OD x 1mm Thk

8шт.

10

80355607

SEALING RING

SEALRING

2шт.

11

89832304

BANJO BOLT

Hollow

2шт.

12

370007

SNAP RING,M45, Ext

2шт.

13

84071143

BRAKE DISC,330mm OD

For 16/71 Differential

2шт.

13

84071125

BRAKE DISC

For 20/61 Differential

2шт.

14

84447450

BRAKE LINE,360mm L

L = 360mm

2шт.

15

84989927

HYD TUBE,4.75 mm DIA x 253, 122 mm L

Brake Duct, For 16/71 Differential

1шт.

15

84431163

TUBE,4.75 mm DIA

Brake Duct, For 20/61 Differential

1шт.

16

84022934

NUT,M10 x 1, Cl 8

2шт.

17

80394629

LOCK WASHER

Heat-treated, M10

2шт.

18

84075471

PLATE

2шт.

19

84062542

HYD CONNECTOR

2шт.

20

84989946

BRAKE LINE

For 16/71 Differential

1шт.

20

84431161

BRAKE LINE

Duct, For 20/61 Differential

1шт.

21

84449205

BANJO BOLT,M10 x 1 x 17mm

4шт.

22

9832303

FITTING

2шт.
