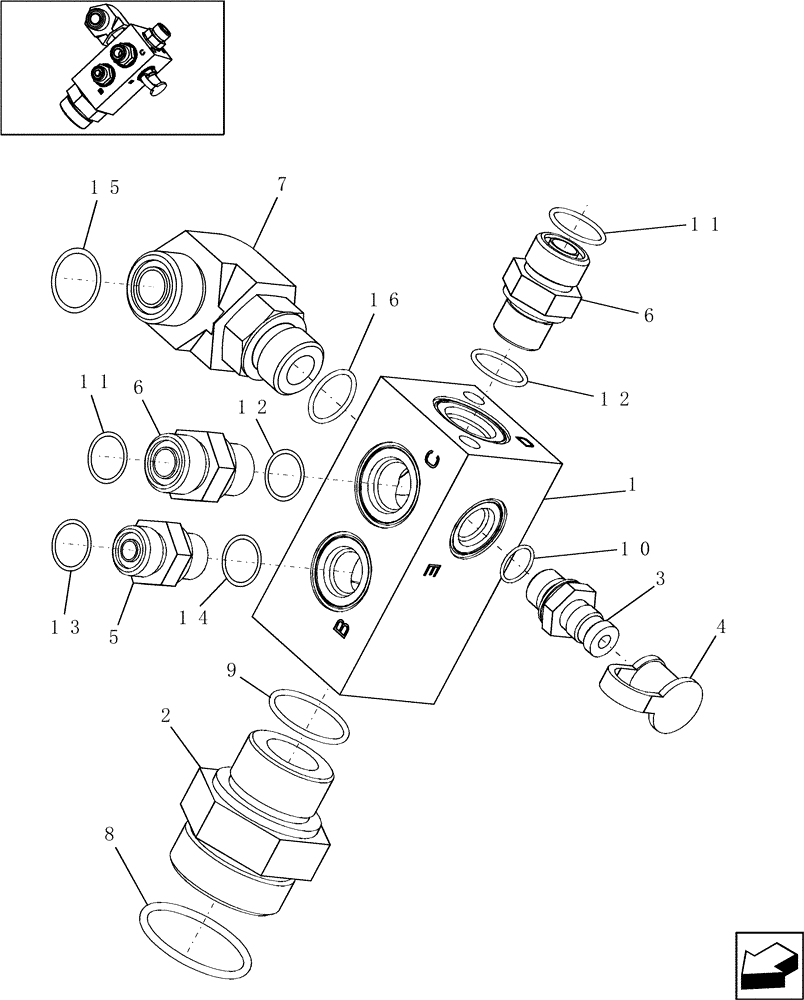

Запчасти Case IH 8010 (35.310.41) - MANIFOLD, CHARGE PRESSURE - 9010 (35) - HYDRAULIC SYSTEMS

1

87624695

MANIFOLD

1шт.

2

86579684

HYD CONNECTOR,1-11/16"-12 ORFS x M33 x 2.0 ORB

Includes: Refs 8 & 9

1шт.

3

84320565

COUPLING,M14 x 1.5

Includes: Ref 10

1шт.

4

86502604

DUST CAP

1шт.

5

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Includes: Refs 13 & 14

1шт.

6

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Includes: Refs 11 & 12

2шт.

7

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Includes: Refs 15 & 16

1шт.

8

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

9

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

10

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
