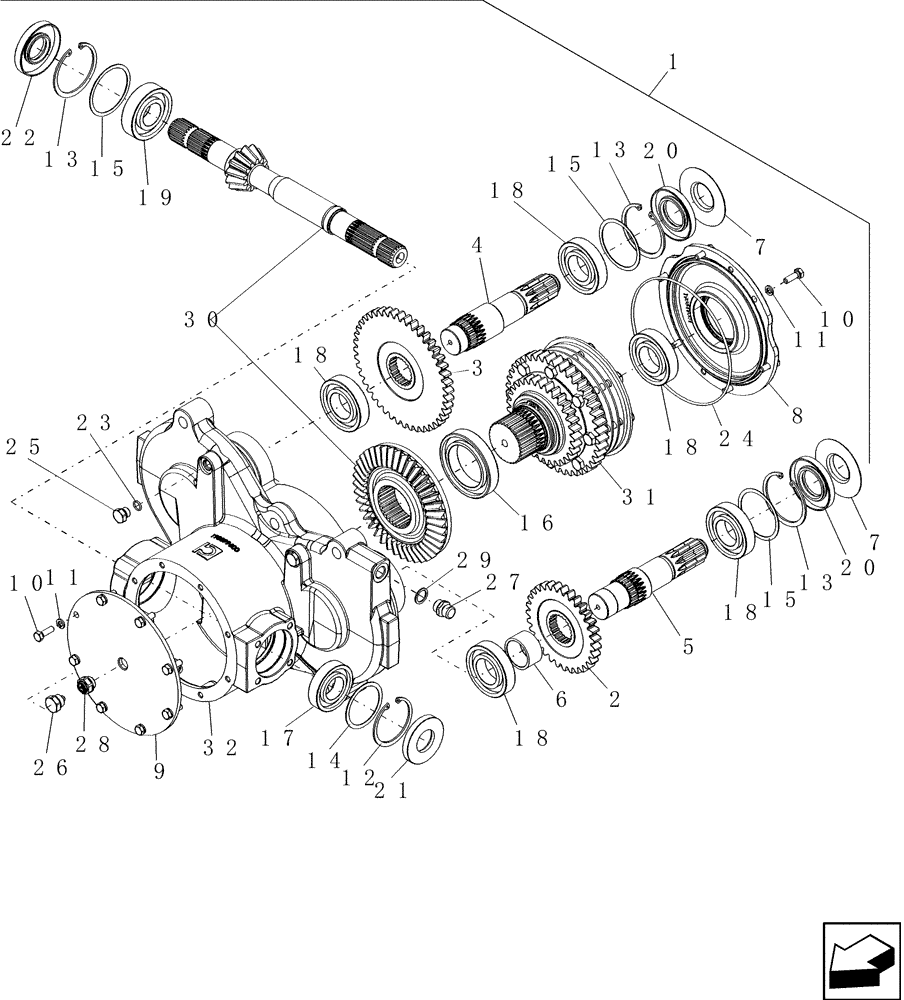

Запчасти Case IH 8010 (60.150.02[02]) - GEARBOX - FEEDER CONVEYOR DRIVE, WITH ROCK TRAP DRIVE - PIN HAJ201168 & AFTER - 7010/8010 (60) - PRODUCT FEEDING

1

87536821

GEARBOX ASSY

1шт.

1

87536821R

REMAN-GEARBOX

7010, 8010, Both P.I.N. HAJ201168 & Aft.

1шт.

1

87536821C

CORE-GEARBOX

Return Number

1шт.

1

84273350R

REMAN-GEARBOX

Reman 7010, 8010, Both P.I.N. HAJ201168 & Aft.

1шт.

1

84273350C

CORE-GEARBOX

Return Number

1шт.

2

87282001

GEAR

31T

1шт.

3

87282002

GEAR

44T

1шт.

4

87282003

SHAFT

1шт.

5

87536812

SHAFT

1шт.

6

87536813

SPACER

1шт.

7

87282006

GUARD

2шт.

8

87536811

COVER

1шт.

9

87282008

COVER

1шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

14шт.

11

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

14шт.

12

370018

SNAP RING,M72, Internal

1шт.

13

300633

SNAP RING,M80, Internal

3шт.

14

87282023

SHIM KIT

Kit

1шт.

15

87282025

SHIM KIT

Kit

3шт.

16

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

17

37203

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

1шт.

18

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

5шт.

19

210048

BALL BEARING,35mm ID x 80mm OD x 21mm W

1шт.

20

87612665

OIL SEAL,38.3mm ID x 80mm OD x 10mm Thk

2шт.

21

87612666

OIL SEAL,35mm ID x 72mm OD x 10mm Thk

1шт.

22

87612667

OIL SEAL,33.3mm ID x 80mm OD x 12mm Thk

1шт.

23

128999

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

24

87302761

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

1шт.

25

220064A1

PLUG,M14 x 1.5, ORB

2шт.

26

87282043

MAGNETIC PLUG

1шт.

27

87282044

PLUG,M18 x 1.5, 28mm L

1шт.

28

87282045

SIGHTGLASS

1шт.

29

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

30

87282018

GEAR SET

1шт.

31

87536810

CLUTCH ASSEMBLY

Friction Slip

1шт.

84224780C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

87536810C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

32

87281999

HOUSING

1шт.
