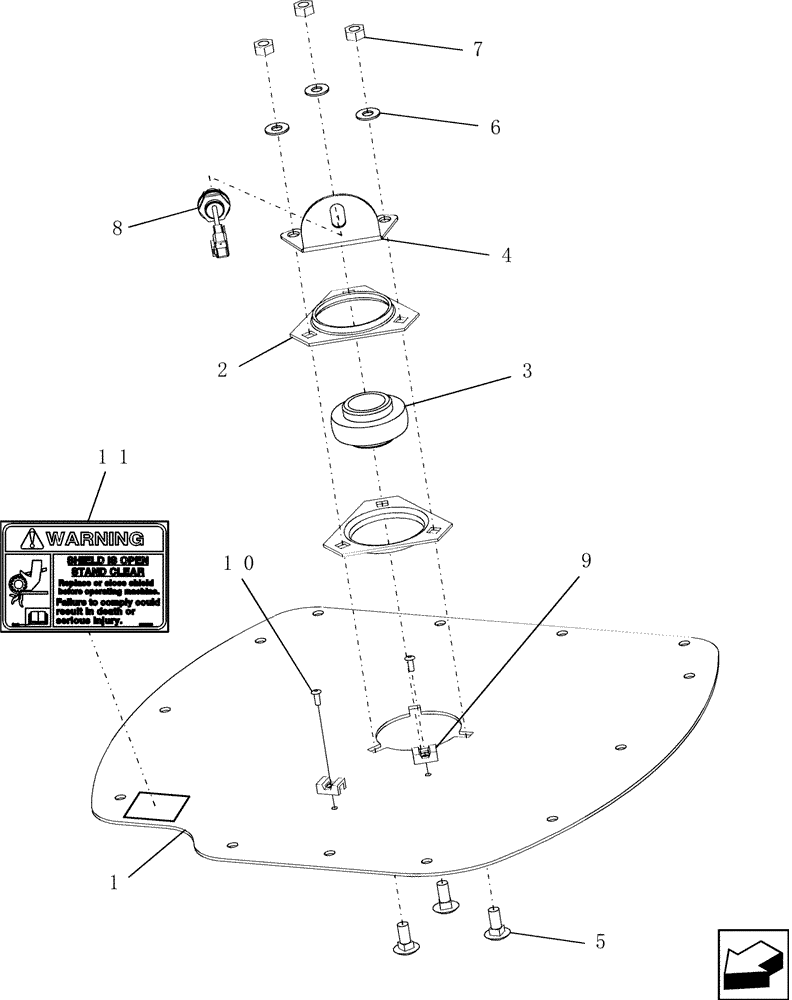

Запчасти Case IH 8010 (66.101.13[01]) - BEARING PLATE - PRIOR TO 4/08 - 7010/8010 (66) - THRESHING

1

87510524

DRIVE PLATE

Includes: Ref 11

1шт.

NA

1шт.

1

87510559

PLATE

Includes: Ref 11

1шт.

EU

1шт.

2

86620026

FLANGED BEARING

2шт.

3

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

4

86976452

BRACKET

Speed Sensor

1шт.

Prior To PIN HAJ202001

1шт.

4

87581727

BRACKET

Speed Sensor

1шт.

PIN HAJ202001 & After

1шт.

5

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

7

100016

NUT,M10 x 1.5, Cl 8

3шт.

8

87342073

SENSOR

Tailings Processor Speed

1шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

2шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

11

86626959

WARNING DECAL

Shield is Open Stand Clear, English

1шт.

NA

1шт.

11

84011345

DECAL

1шт.

EU

1шт.
