1
84190587
SERVICE KIT

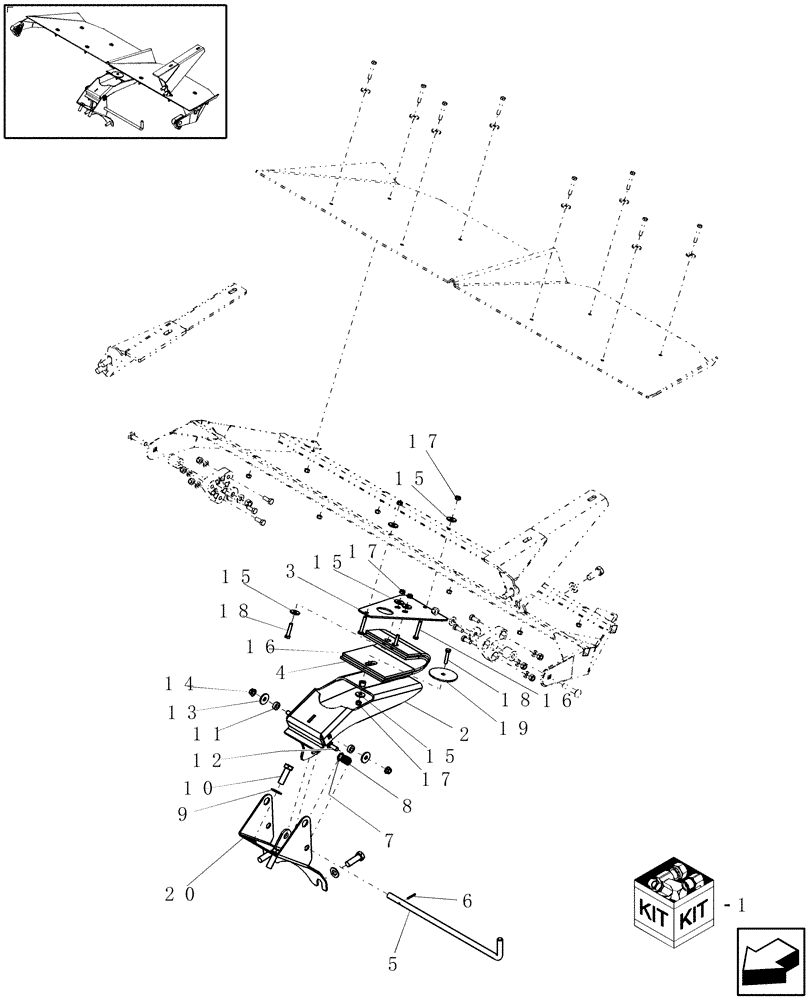

Oscillating Pan Upgrade
1шт.
2
84184117
SUPPORT ASSY.
1шт.
3
84154907
PLATE ASSY.
1шт.
4
84154916
BELT
2шт.
5
84162351
PIN
1шт.
6
87913
LOCK PIN,3.17mm OD x 31.75mm L, Slotted
1шт.
7
87613216
WASHER,0.66" ID x 1" OD x 0.06" Thk
1шт.
8
86611329
SPRING
1шт.
9
140048
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
4шт.
10
120090
BOLT,Hex, M16 x 50mm, Cl 8.8
4шт.
11
84231043
BUSHING,10.5mm ID x 27mm OD x 12mm Thk
2шт.
12
87682392
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9
2шт.
13
140042
WASHER,11mm ID x 34mm OD x 3mm Thk
2шт.
14
86050279
FLANGE NUT,M10 x 1.5, Cl 10
2шт.
15
140041
WASHER,M8 x 28mm OD x 3mm Thk
7шт.
16
43130
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
2шт.
17
9628098
NUT,M8 x 1.25, Cl 10
5шт.
18
43129
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
3шт.
19
136443
WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk
1шт.
20
84185911
CHANNEL
Support
1шт.
