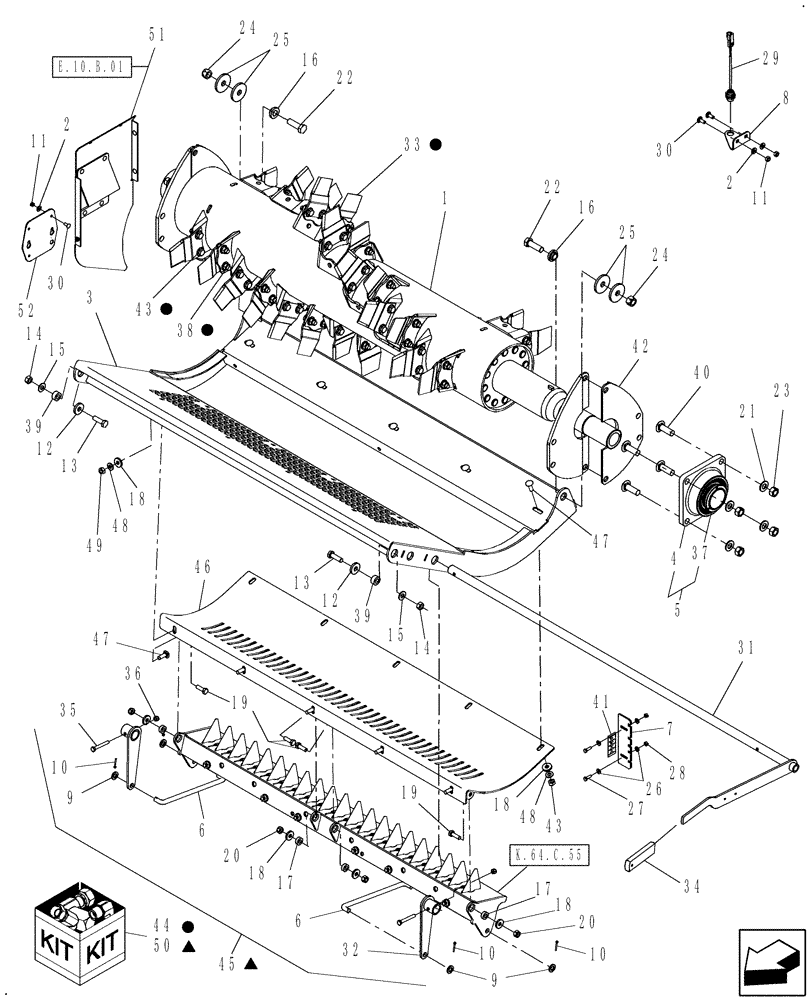

Запчасти Case IH 8010 (88.210.10[01]) - STRAW CHOPPER, STANDARD AND FINE, NA ONLY - PRIOR TO PIN HAJ203154 - 7010/8010 (88) - ACCESSORIES

1

87340544

STRAW CHOPPER

STD Cut, with Blades

1шт.

1

87340548

STRAW CHOPPER

FINE Cut, with Blades

1шт.

1

87340540

ROTOR

No Blades, Used With STD and FINE

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

87282893

PAN

1шт.

4

NSS

NOT SOLD SEPARAT

Housing, Bearing

1шт.

5

87109088

BEARING ASSY

Includes: Bearing, and Housing, Ref 4 & 37

1шт.

Please Read Figure Note

1шт.

6

87282824

LINK

2шт.

7

87109324

PLATE

1шт.

8

87107532

BRACKET

Supporting

1шт.

9

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

10

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

13

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

14

9706685

NUT,M12 x 1.75, Cl 8

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

87000251

BUSHING,17mm ID x 34mm OD x 12mm L

2шт.

17

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

5шт.

18

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

14шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

22

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

23

392530

NUT,M16, Cl 10

4шт.

24

86512555

NUT,M16 x 2, Cl 10

2шт.

25

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

4шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

9706755

NUT,M6, Cl 8

2шт.

29

87342073

SENSOR

Straw Chopper Speed

1шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

87281621

HANDLE

1шт.

32

87108765

ARM

2шт.

33

87280494

BLADE

Cutting

28шт.

34

357545

HANDLE GRIP

1шт.

35

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

36

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

37

NSS

NOT SOLD SEPARAT

BEARING, Incl with Ref 5

1шт.

38

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

Standard Cut

56шт.

39

699963

SPACER

2шт.

40

87109745

PLUG

Plastic - 25.4mm DIA

24шт.

40

87284568

PLUG

Plastic - 22.2mm DIA

24шт.

41

87280049

DECAL

Height of Knives

1шт.

Standard Cut

1шт.

41

87280494

BLADE

Cutting

56шт.

Fine Cut

1шт.

42

9845488

BOLT

Rd Hd, Short Neck, CL 10.9, M16 x 50

4шт.

43

86512497

FLANGE NUT,M12 x 1.75, Cl 10

56шт.

44

87280980

SERVICE KIT

Blades (2) & Bolts (4) & Nuts (4)

1шт.

45

87282748

SEAL

4шт.

46

87565653

GUARD ASSY.

Standard, Less Ref 3

1шт.

47

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

Incl Ref 46 & Kit 87283410 (Straw Chopper Drive)

10шт.

48

87592357

BRACKET

1шт.

4/07 & After

1шт.

Used W/New Modular Style Knife Bar

1шт.

49

100016

NUT,M10 x 1.5, Cl 8

10шт.

50

84192820

GUIDE

2шт.
