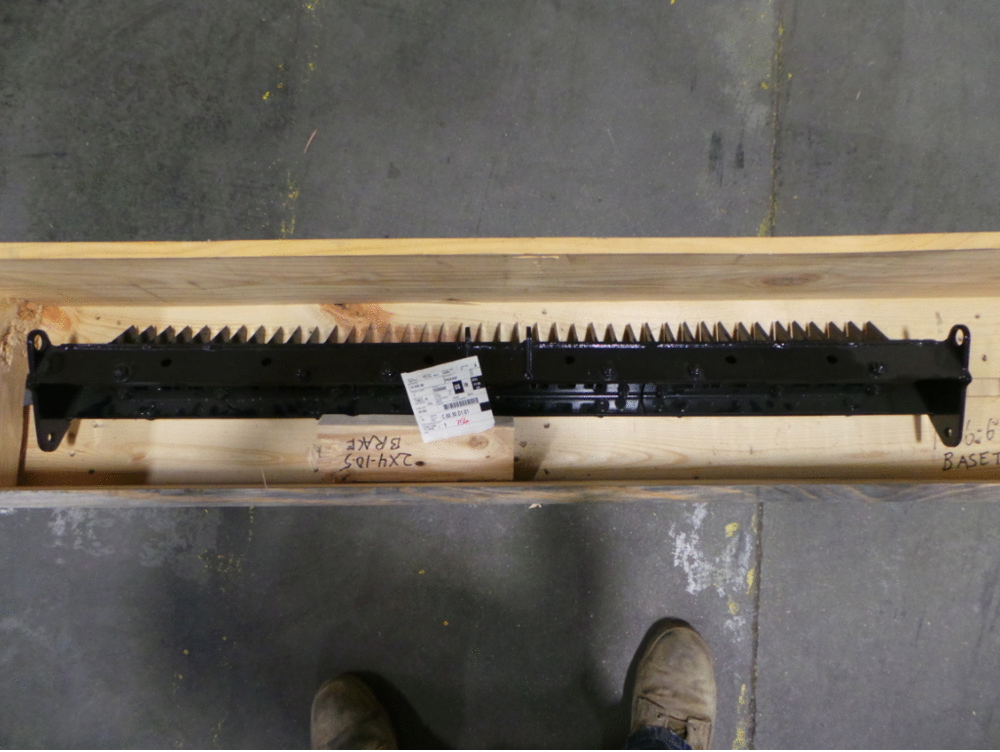

Запчасти Case IH 8010 (88.434.16) - KIT COMPLETE FIX CHOPPER FINE (88) - ACCESSORIES

1

87298180

PACKAGE

Incl 2 - 12

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

3

100016

NUT,M10 x 1.5, Cl 8

12шт.

4

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

18шт.

5

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

6

87106692

KNIFE SECTION

41шт.

7

87391950

U-BOLT

9шт.

8

87578082

FRAME

1шт.

9

87578084

SUPPORT ASSY.

Narrow

2шт.

10

87585835

SUPPORT ASSY.

Wide

1шт.

11

87633177

RETAINER

Narrow Fine

4шт.

12

87633179

RETAINER

Wide Fine

2шт.
