(10.402.08[02]) - TEMPERATURE CONTROL (THERMOSTAT) - 8120/8120(LA)

Запчасти Case IH 8120 (10.402.08[02]) - TEMPERATURE CONTROL (THERMOSTAT) - 8120/8120(LA) (10) - ENGINE

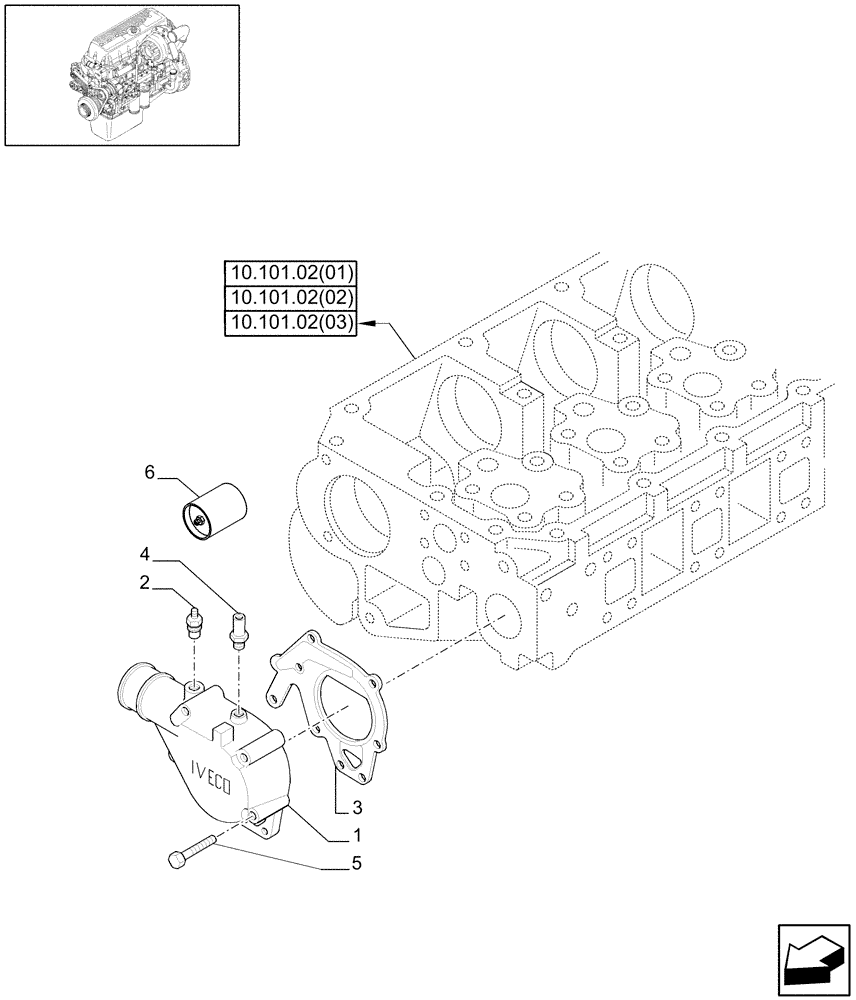

Схема запчастей Case IH 8120 - (10.402.08[02]) - TEMPERATURE CONTROL (THERMOSTAT) - 8120/8120(LA) (10) - ENGINE
5
10.101.02(01)
10.101.02(03)
10.101.02(02)
2
4
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504246398

THERMOSTAT

Includes 2 Retaining Rings and Ref 6 Support

1шт.

2

500304562

BLEEDER VALVE

1шт.

3

500362150

GASKET

1шт.

4

98475757

FITTING

1шт.

5

16586877

BOLT,Hex, M8 x 45mm, A2-70

2шт.

5

500383813

SCREW

M8 x 105

5шт.

6

504263917

SLEEVE

Thermostat Support, DOES NOT include complete thermostat

1шт.
