(35.300.09[02]) - RESERVOIR - HYDRAULIC, WITH HOSES AND SUPPORTS - 8120/8120(LA), 9120

Запчасти Case IH 8120 (35.300.09[02]) - RESERVOIR - HYDRAULIC, WITH HOSES AND SUPPORTS - 8120/8120(LA), 9120 (35) - HYDRAULIC SYSTEMS

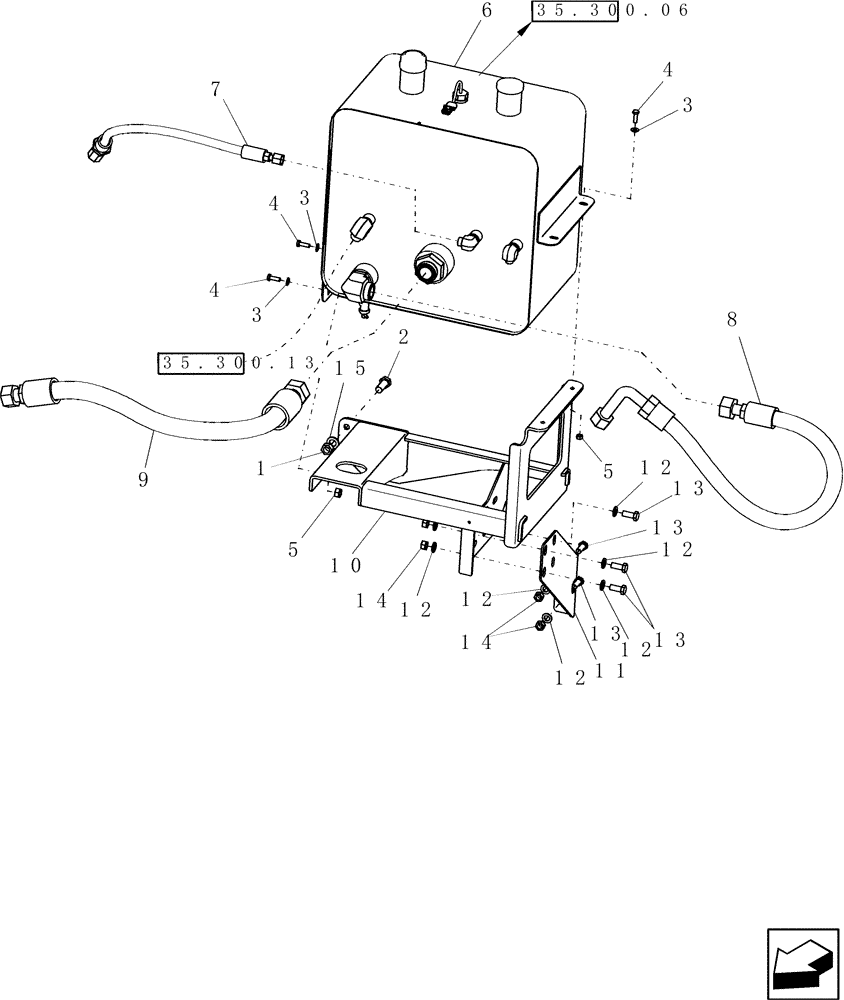

Схема запчастей Case IH 8120 - (35.300.09[02]) - RESERVOIR - HYDRAULIC, WITH HOSES AND SUPPORTS - 8120/8120(LA), 9120 (35) - HYDRAULIC SYSTEMS
9
12
13
13
3
11
15
14
7
5
13
14
1
5
12
12
8
12
35.300.06
35.300.13
12
2
4
4
13
6
3
12
10
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

825-1416

NUT,M16, Cl 8

3шт.

2

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

9706690

NUT,M8 x 1.25, Cl 8

4шт.

6

87548960

RESERVOIR, HYDRAULIC

1шт.

7

86999156

FLEXIBLE HOSE

PFC Pump, Drain

1шт.

8

86999154

FLEXIBLE HOSE

PFC Pump, Suction

1шт.

9

86999153

FLEXIBLE HOSE

Gear Pump, Suction

1шт.

10

86975645

BRACKET

1шт.

11

86976375

BRACKET

1шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

14

9706685

NUT,M12 x 1.75, Cl 8

1шт.

15

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.
