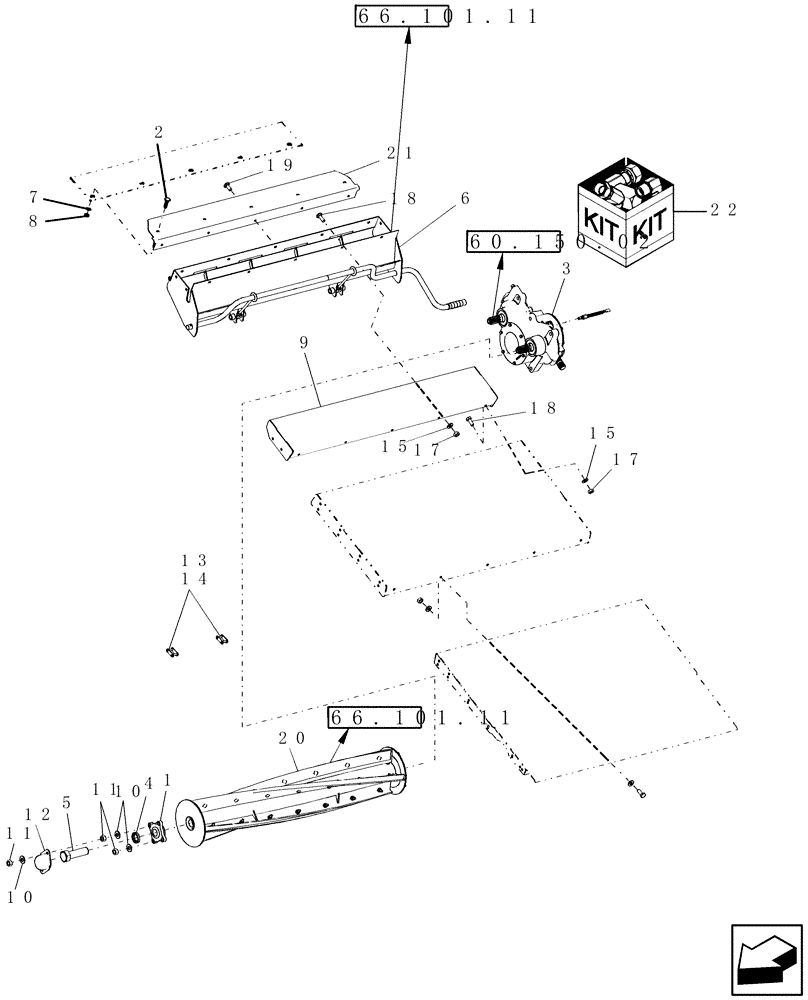

1
86995212
BEARING ASSY
1шт.
2
84814921
HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9
5шт.
3
87696851
GEARBOX ASSY
w/Stone Trap, Serial Range: -Y9G205959 y9g205959
1шт.
Prior to 3/1/09
1шт.
1000 RPM
1шт.
87696851C
CORE-TRANSMISSION
Return Number, GEARBOX TRANSMISSION - for N.A. Only
1шт.
3
84177487
GEARBOX ASSY
w/Stone Trap, Start Serial: y9g205960
1шт.
From 3/1/09
1шт.
700 RPM
1шт.
84177487C
CORE-TRANSMISSION
Return Number, GEARBOX TRANSMISSION - for N.A. Only
1шт.
4
86997123
WASHER,40mm ID x 57mm OD x 10mm Thk
1шт.
5
86981357
BOLT,1.5" - 6 UNC STD Thread 17.8mm L
1шт.
6
87673527
SUMP
1шт.
7
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
5шт.
8
9804277
FLANGE NUT,Hex, M8 x 1.25, Cl 8
5шт.
9
87673525
FLOOR
1шт.
10
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
6шт.
12
86996082
COVER
1шт.
13
87625526
LINK,41.4mm Pitch
Incl Ref 14 (2)
4шт.
14
86625061
NUT,1/4"-20, GB
8шт.
15
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
15шт.
16
43139
BOLT,M10 x 1.5 x 25mm, Cl 8.8
3шт.
17
100016
NUT,M10 x 1.5, Cl 8
15шт.
18
86633356
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
10шт.
19
86512446
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
5шт.
20
87284912
BEATER,Assembly
1шт.
21
87730305
FLOOR
RR
1шт.
22
87730303
DIA KIT, HARVESTER
Stone Trap; Incl Ref 1 - 21
1шт.
