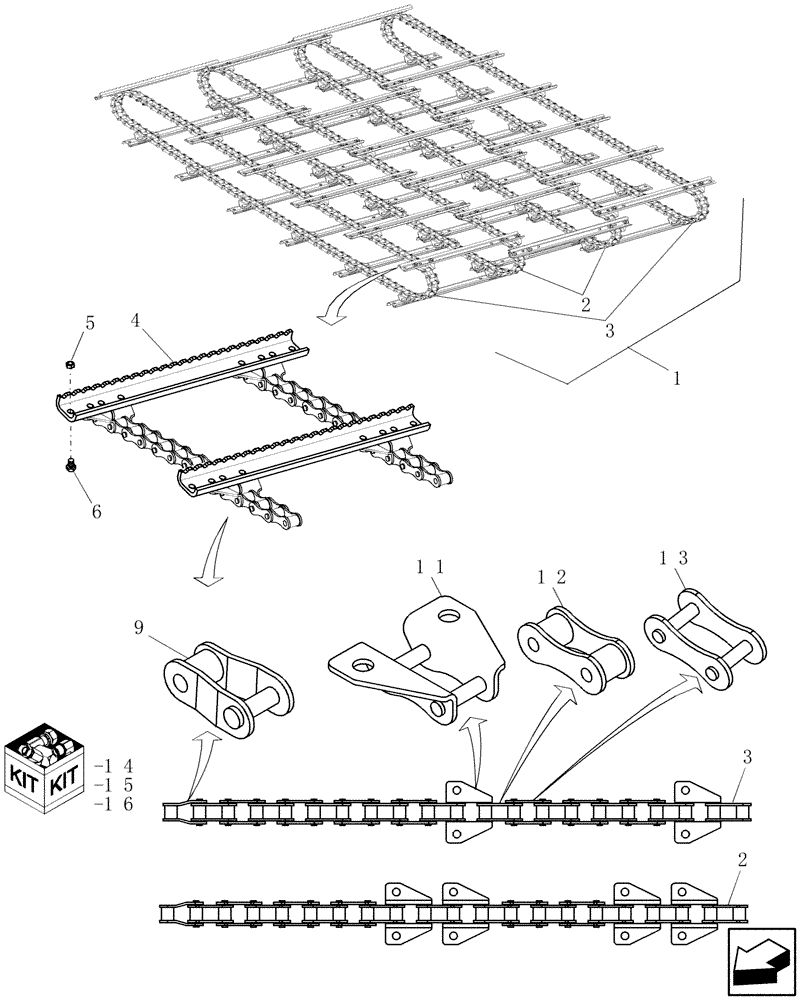

Запчасти Case IH 8120 (60.105.03[01]) - CHAIN ASSY AND FEEDER SLATS - MY10 PRODUCTION - U SHAPED SLAT PROFILE (60) - PRODUCT FEEDING

1

84179639

CHAIN,Feeder, 100 Links x 41.4mm = 4140mm

Rock Trap

1шт.

1

84179642

CHAIN,Feeder, 113 Links x 41.4mm = 4678.2mm

Non Rock Trap

1шт.

2

84217941

CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm

Inner, Rock Trap

2шт.

2

84217945

CHAIN (AG),CA557, 113 Links x 41.4mm = 4678.2mm

Inner, Non Rock Trap

2шт.

3

84217950

CHAIN (AG),CA557, 100 Links x 41.4mm = 4140mm

Outer, Rock Trap

2шт.

3

84217947

CHAIN (AG),CA557, 113 Links x 41.4mm = 4678.2mm

Outer, Non Rock Trap

2шт.

4

NSS

NOT SOLD SEPARAT

U Shaped Slats, Rock Trap (36), Non Rock Trap (42) Order Kit #15

1шт.

5

84207195

NUT,M10 x 1.5

M10 x 1.5, Rock Trap (144), Non Rock Trap (168)

1шт.

6

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

Rock Trap (144), Non Rock Trap (168)

1шт.

9

1324835C1

OFFSET LINK

Used with Rock Trap Only

2шт.

9

1324294C1

LINK,40.893mm Pitch

Used With Kit Ref 14

4шт.

11

87283352

CONNECTING LINK

Attacking Link, Rock Trap (72), Non Rock Trap (76)

1шт.

12

87283351

LINK,Chain, 41.4mm Pitch

Roller Link with Solid Bushings, Rock Trap (200), Non Rock Trap (228)

1шт.

13

87283349

LINK,41.4mm Pitch

Rock Trap (124), Non Rock Trap (140)

1шт.

14

84222949

KIT

Contains (1) Chain Assy and Rock Trap (4) Conn Links Ref 9

1шт.

15

84222922

KIT

Contains (1) Slat, (4) of Ref 6 and 5

1шт.

16

84222952

KIT

Contains (1) Chain Assy, Non Rock Trap and (4) Conn Links Ref 9

1шт.
