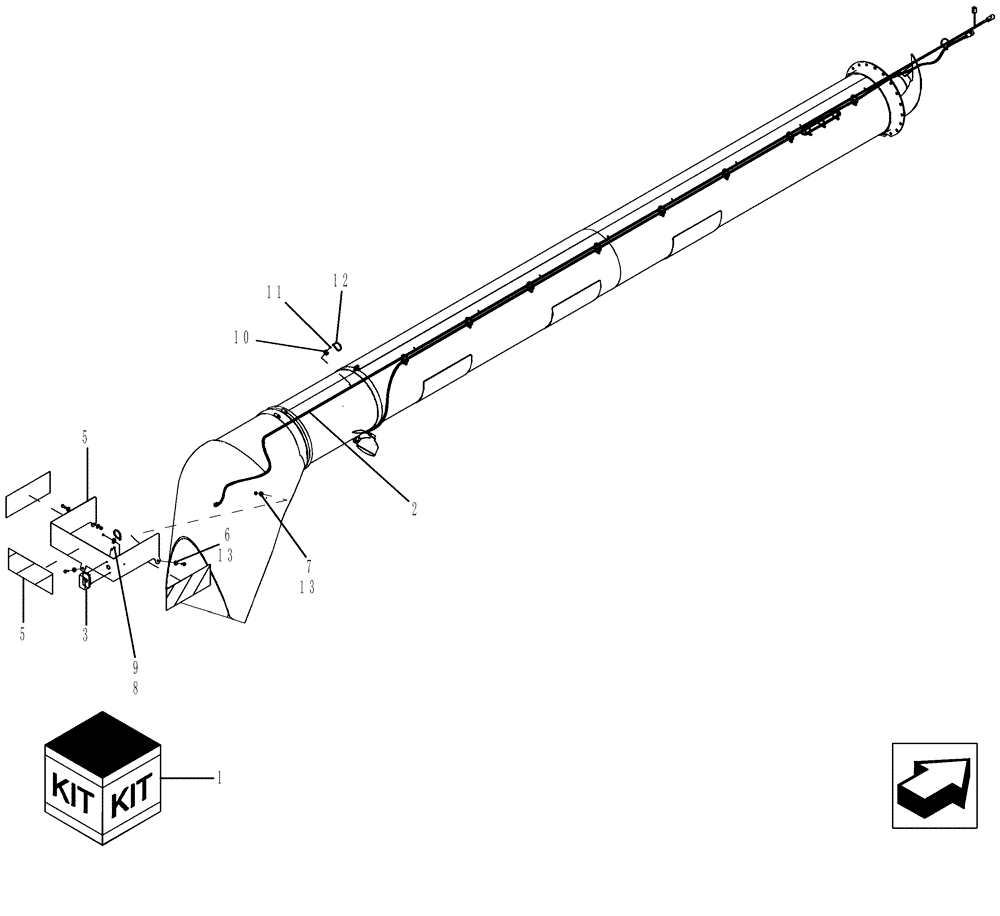

Запчасти Case IH 8120 (88.090.02) - SIGNAL PLATE FOR UNLOADING TUBE, EUROPEAN ONLY (88) - ACCESSORIES

1

84221191

UNLOADING TUBE

Dia Kit, unloading Tube, EU Signal Plate FF Ref 2-13

1шт.

2

86610718

WIRE HARNESS

1шт.

3

84429842

LAMP

1шт.

4

84441358

DECAL

3шт.

5

84221190

BRACKET, SUPPORTING

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

7

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

8

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

9

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

11

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

12

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

13

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

6шт.
