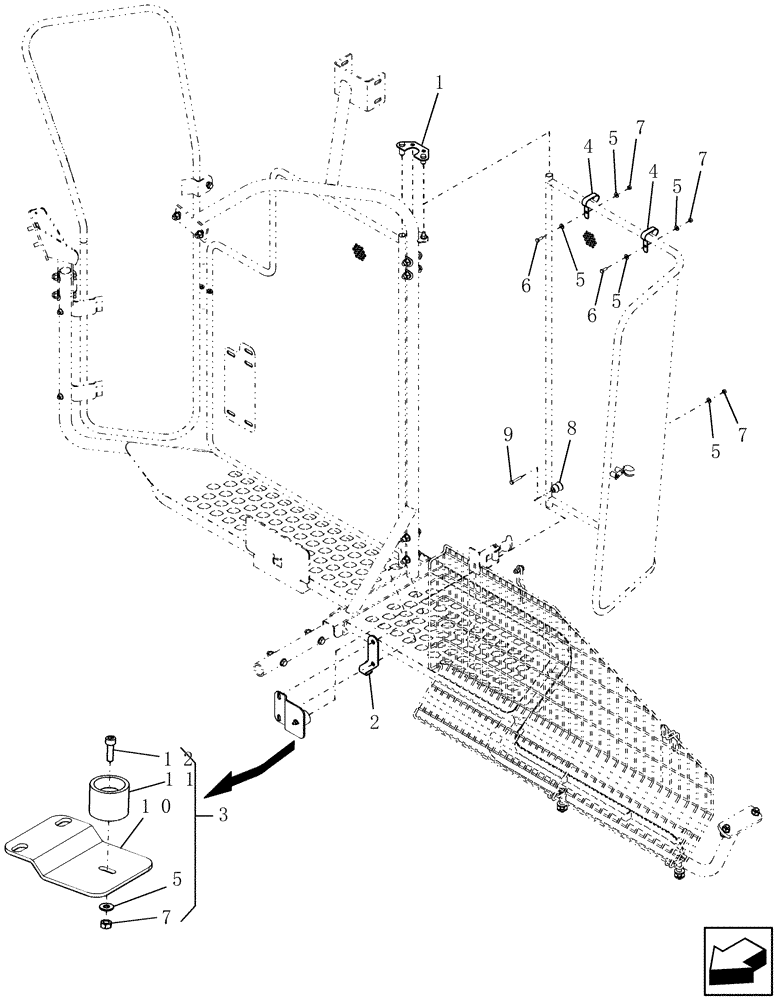

Запчасти Case IH 8120 (90.118.40) - BRACKETS, LOWER SHIELDS - TRACK - NA - 8120, 9120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84130548

BRACKET

1шт.

2

87498861

BRACKET

1шт.

3

87485230

PACKAGE,SERVICE

Bracket Assembly; Incl Refs 5, 7, 10 Thru 12

1шт.

4

87485227

BRACKET

2шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

8

87485234

FASTENER

1шт.

9

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

10

87485229

BRACKET

1шт.

11

87485233

FASTENER

1шт.

12

86512135

HEX SOC SCREW,M6 x 1 x 20mm, Cl 12.9

1шт.
